製品仕様
- Type
- Two-Way
- Series
- Power Series
- Size
- 6-1/2
- MSRP U.S.
- $169.95 per pair
- Frequency Response
- 45Hz – 23kHz
- Sensitivity
- (2.83V@1m) 93dB
- Power Handling (Peak)
- 225W
- Nominal Impedance
- 2 ohms
- Power Handling (RMS)
- 75W
- Mounting Depth (in)
- 2-1/4
- Mounting Depth Woofer (mm)
- 57.3
- Mounting Cutout Diameter (mm)
- 128.6
- Mounting Cutout Diameter (in)
- 5-1/16
- External Diameter (in)
- 6-1/4
- Mounting Depth Woofer (in)
- 2-1/4
- Mounting Depth (mm)
- 57.3
- External Diameter (mm)
- 158.2

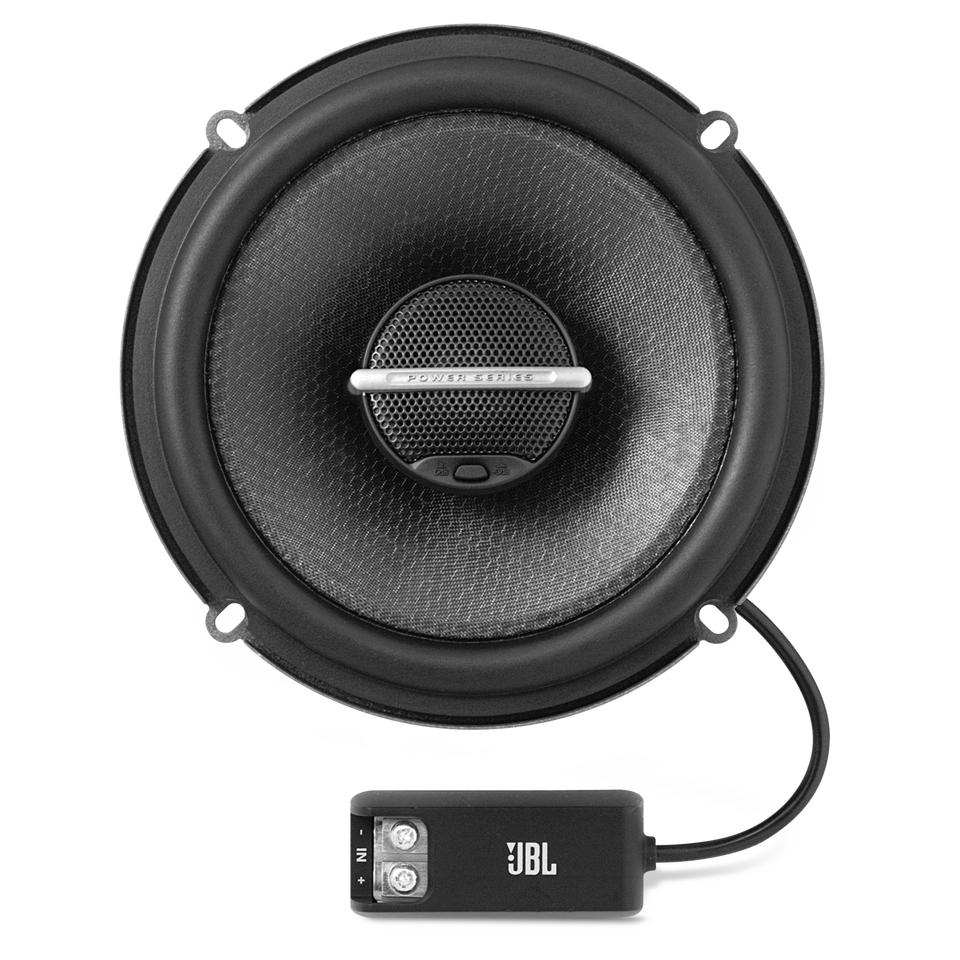

6-1/2 inch 2-Way Loudspeaker with Plus One HCL woofer cone and high-bandwidth edge-driven textile dome tweeter
The Plus One® Honeycomb-Laminate™ woofer cone is exceptionally stiff and lightweight with up to 25 percent more active surface area than a standard one of the same size. With a long-excursion surround, it boosts bass output and efficiency by 2 to 3 decibels compared with others.
It’s not the miniature tweeters that most others use, but a high-bandwidth, edge-driven textile-dome tweeter like those found in very high-end home audio loudspeakers. Crank it up. You get less distortion, even at high volumes and superior integration with the woofer.
Another JBL® feat of engineering: the tweeter is mounted on a 15-degree angle so you can rotate it nearly 360 degrees to aim it at the listening position for improved high-frequency response.
The JBL® P662 has tweeter-level control. Use the simple switch to set the tweeter output level to match your personal listening preference, or different mounting locations.
You’ll have 75 watts RMS and 225 watts peak power handing. And push them to the limit. You’ll hear true JBL® sound, with nothing under- or over-emphasized. The P662 has a frequency response of 45Hz to 23kHz.
In addition to better sound quality, the new, proprietary, JBL-patented woofer design offers far higher SPL (sound pressure level) and better suspension symmetry for lower distortion than the previous generation.
These speakers make the best use of any amplifier by providing an optimum 2-ohm load. They use a lower-impedance voice coil than a typical speaker to extract the most power and performance possible from all amplifiers engineered to drive loads of 4 ohms or less.
Outboard crossovers are integrated into a harness connected to each speaker for easy installation. Oversized Direct-Connect terminals ensure perfect connectivity for bare speaker wires.
