製品仕様
- Type
- Three-Way
- Size
- 6 x 9
- Series
- Power Series
- MSRP U.S.
- $229.95 per pair
- Nominal Impedance
- 2 ohms
- Power Handling (Peak)
- 330W
- Frequency Response
- 35Hz–23kHz
- Power Handling (RMS)
- 110W
- Sensitivity
- (2.83V@1m) 96dB
- External Diameter (mm)
- 234.5
- Mounting Cutout Diameter (in)
- 8-3/4
- Mounting Depth (in)
- 3-1/4
- Mounting Cutout Diameter (mm)
- 222
- External Diameter (in)
- 9-1/4
- Mounting Depth (mm)
- 82.5
- Low-Frequency Transducer
- PlusOne® HCL™ honeycomb-laminate cone
- Crossover Frequencies
- Outboard
- High-Frequency Transducer
- 25mm (1") edge-driven textile dome
- Ultra High Frequency Transducer
- 22mm (7/8") edge-driven textile dome
- Controls/Adjustments
- UHF cut

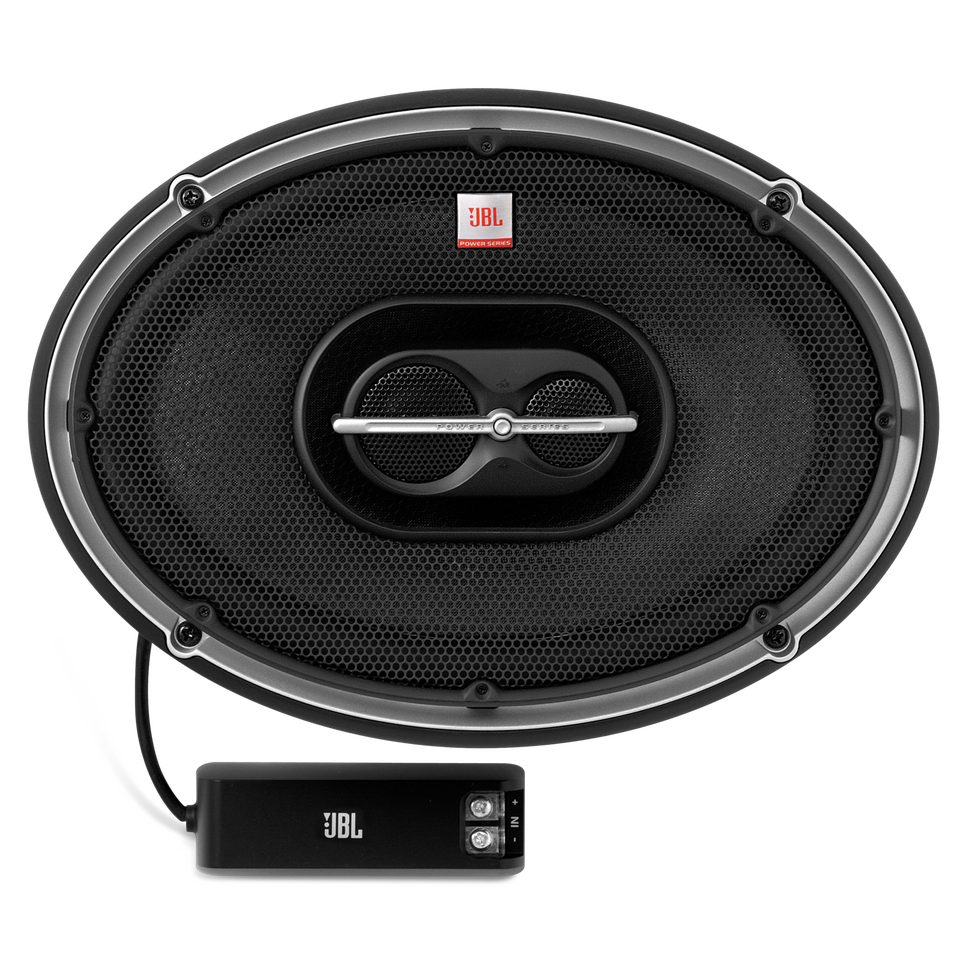

6 inch x 9 inch 3-Way Loudspeaker with Plus One HCL woofer cone and high-bandwidth edge-driven textile dome tweeter and super tweeter
The Plus One® Honeycomb-Laminate™ woofer cone is exceptionally stiff and lightweight with up to 25 percent more active surface area than a standard one of the same size. With a long-excursion surround, it boosts bass output and efficiency by 2 to 3 decibels compared with others.
It’s not the miniature tweeters that most other manufacturers use, but a high-bandwidth, edge-driven textile-dome tweeter like those found in very high-end home audio loudspeakers. Crank it up. You get less distortion even at high volumes and superior integration with the midwoofer.
These speakers make the best use of any amplifier by providing an optimum 2-ohm load. They use a lower-impedance voice coil than a typical speaker to extract the most power and performance possible from all amplifiers engineered to drive loads of 4 ohms or less. And the spider integrated, stitched-in tinsel gives the speaker enhanced reliability and eliminates audible tinsel-lead slap.
The JBL® P963 has a tweeter-level control. Use the simple switch to set the tweeter output level to match your personal listening preference or different mounting locations.
You’ll have 110 watts RMS and 330 watts peak power handling and a 96dB sensitivity rating. And you can push them to the limit. You’ll hear true JBL® sound. Nothing is under- or over-emphasized. The P662 has a frequency response of 35Hz to 23kHz.
In addition to better sound quality, the new, proprietary, JBL-patented woofer design offers far higher SPL (Sound Pressure Level) and better suspension symmetry than the previous generation.
Outboard crossovers are integrated into a harness connected to each speaker for easy installation. Oversized Direct-Connect terminals ensure perfect connectivity for bare speaker wires.
