AVR 132

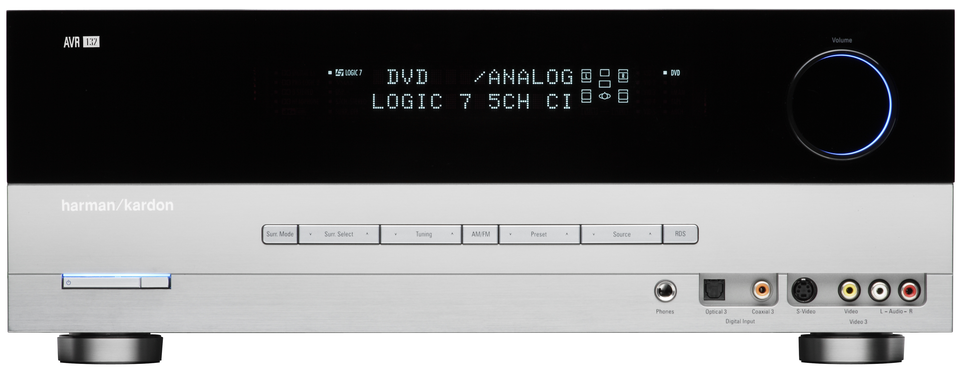

AVR 132 AV RECEIVER

2006から2007まで販売

Made in:	China

製品仕様

仕様一覧

Power Requirements: AC 220 – 240V / 50Hz

Power Consumption: 72W idle, 580W maximum (5 channels driven)

Digital Inputs (coaxial/optical): 2/2 on rear; 1/1 on front

Analog Inputs: 1 A/V on front panel

Analog Inputs: 2 audio-only

Analog Inputs: 3 A/V on rear panel

Analog Inputs: 6-/8-channel input

Analog Inputs: tuner

On-Screen Display: Yes

Multizone Capability: No

Auto Setup: No

Remote Control: Seven-device, programmable remote

オーディオ仕様

# of Amplifier Channels: 5

Continuous Average Power (FTC) per Channel (stereo mode): 40 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Front L & R Channels: 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel: 30 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels (L & R Side, Back): 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 95dB (IHF-A)

Surround System Adjacent Channel Separation:

Dolby Pro Logic I and II: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 100kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): Unmeasurable

Slew Rate: 40V/µsec

サイズ

Width: 440mm

Height: 165mm

Depth: 382mm

Weight: 9.6kg

Dimensions:

ビデオ仕様

Television Format: PAL/NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response:

Composite and S-Video: 10Hz – 8MHz (–3dB)

Component Video: 10Hz – 50MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 522 – 1620kHz

Frequency Range: FM... 87.5 – 108.0MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... Mono/Stereo 70/65dB

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod 0.8%

Distortion: FM... Mono/Stereo 0.15/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 35dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Amplifier Specifications

Amplifier Power (RMS): 30W x 5 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)

High Instantaneous Current Capability (HCC): ± 25 Amps

The AVR 132 brings new life to movies and music, thanks to a wide variety of 5.1-channel decoding and processing modes, including Dolby Digital, Logic 7 and DTS. Multiple inputs and outputs let you connect to any analog or digital source, including component video. With the AVR 132, your speakers never heard it so good!
