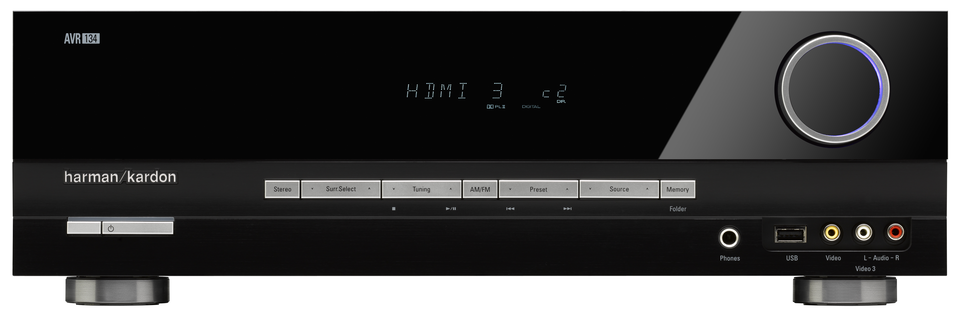

AVR 134

5.1-Channel AV Receiver with HDMI switching

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 2.76 MB

製品仕様

仕様一覧

Type: 5.1-Channel AVR

Total Harmonic Distortion: 0.07% @ 6 ohms

Bandwidth: 20Hz – 20kHz

Bandwidth @ 1W (-3dB): 10Hz – 130kHz

Power Supply: Independent front & rear

Surround Modes: Dolby Digital, Pro Logic II, Dolby Virtual Speaker, DTS 5.1

Headphone Modes: 2-Channel, Dolby HP

S-Video/Composit Video Inputs: 2

Analog Audio Inputs: 5

Digital Audio Inputs: Rear panel 2 coax / 1 optical

Auxilary Audio Input: USB

HDMI: 1.3a Switching

HDMI: Inputs... 3

HDMI: Output... 1

Preamp Outputs: Subwoofer

Component Video Inputs (Assignable): 2 @ 100MHz

A/V Sync Delay: Yes

System Remote: Programmed

Discrete Remote On/Off Codes: Yes

Speaker Terminals: Color-coded binding posts

サイズ

Weight: 8.5kg

Dimensions (H x W x D): 141mm x 440mm x 350mm

The Harman Kardon® AVR 134 is all about getting connected – digitally. It features three HDMI™ inputs, two wide-bandwidth HDTV-ready component video inputs, a front-panel USB input for playback of USB mass storage devices and a portfolio of advanced surroundprocessing technologies, including Dolby Digital and DTS processing. With the AVR 134, your speakers never heard it so good!
