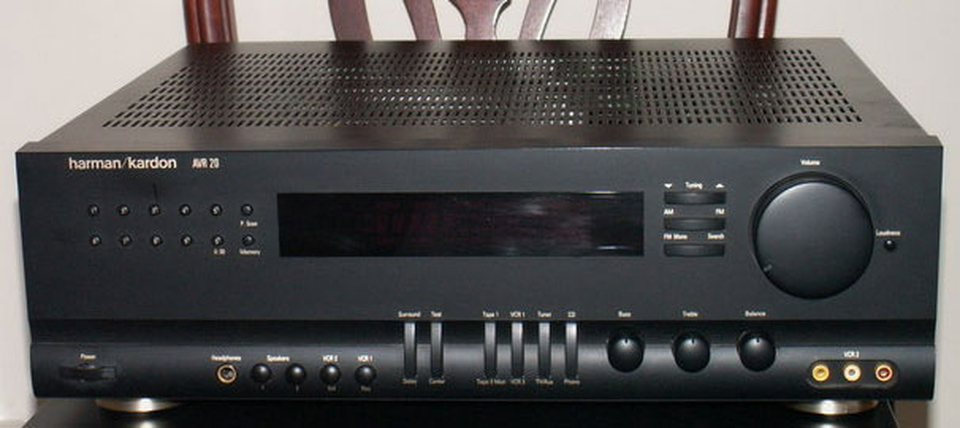

AVR 20

AVR 20

Audio/Video Receiver With Dolby Pro-Logic (60 watts x 2 | 50 watts x 3 front & 20 watts rear)

1994から1995まで販売

後継製品: AVR 20 II

ドキュメントとダウンロード

製品仕様

MSRP U.S.
$529.95 each
Usable Sensitivity
FM... MONO – 11.2dB
Quieting Sensitivity
FM... STEREO – 37.2dB
Signal-to-Noise Ratio
FM... MONO – 74dB
Signal-to-Noise Ratio
AM... STEREO – 70dB
Capture Ratio
FM... 2.0dB
Selectivity
AM... 5dB
Alternate Channel Selectivity
FM... 65dB
Alternate Channel Selectivity
AM... 55dB
IF Rejection
AM... FM – 100dB 60dB
AM Rejection
FM... 55dB
Stereo Separation
AM... 45dB
Total Harmonic Distortion
MONO – @ 1kHz 0.2%
Total Harmonic Distortion
STEREO – 0.3% @ 1kHz
Sensitivity
AM... EXTERNAL ANTENNA – 25 microvolts
Image Rejection
AM... 35dB
Audio Inputs
3 line, 1 phono
Audio Loops
2
Audio/Video Inputs
2
Audio/Video Loops
1
Preamp Outputs
Main, Center, Rear
Power Amp Inputs
Main
Video Outputs
2
Amplifier Power (RMS)
STEREO – 60 watts per channel @ 8 ohms
Amplifier Power (RMS)
SURROUND – FRONT L & R, CENTER 50 watts per channel @ 8 ohms
Amplifier Power (RMS)
SURROUND – REAR 20 watts per channel @ 8 ohms
Total Harmonic Distortion
STEREO – @ 8 ohms 0.09%
Total Harmonic Distortion
FRONT L & R, CENTER – @ 8 ohms 0.3%
Total Harmonic Distortion
REAR – 1% (8 ohms)
High Instantaneous Current Capability (HCC)
± 30 Amps
Negative Feedback
26dB
Frequency Response
0.5Hz – 150kHz (±3dB)
Slew Rate
80 v/microsecond
Rise Time
1.8 microseconds
Transient Intermodulation Distortion (TIM)
Unmeasurable
Signal-to-Noise Ratio
PHONO – 74dB
Signal-to-Noise Ratio
CD, VIDEO, etc – 93dB
Input Level/Impedance
PHONO – 2.5mv/47k ohms
Input Level/Impedance
CD, VIDEO, etc – 150 mv/22k ohms
RIAA Equalization
±1dB
Phono Overload
140mv
Tone Controls
BASS -±10dB @ 100Hz
Tone Controls
TREBLE – ±10dB @ 10kHz
Loudness Control
+7dB @ 100Hz & +3dB @ 10kHz
