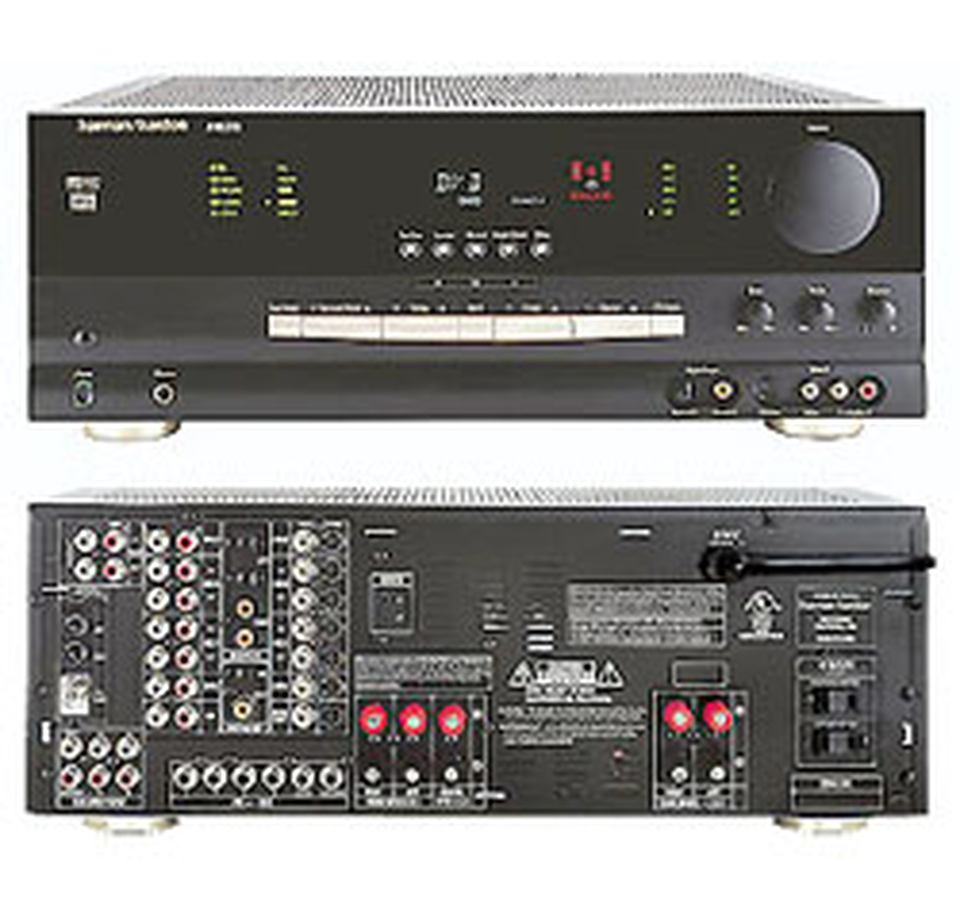

AVR 210

AVR 210

Audio/Video Receiver With Dolby Digital & DTS (50 watts x 2 | 40 watts x 5)

2000から2001まで販売

従来/現行製品: AVR 45
後継製品: AVR 220
Made in: Hong Kong

ドキュメントとダウンロード

製品仕様

Power Requirements
AC 120V/60Hz
Power Consumption
72 Watts idle, 580 Watts maximum (2 channels driven)
MSRP U.S.
$599.95 each
Continuous Average Power (FTC) per Channel (stereo mode)
50 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
40 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
40 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels
40 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
95dB (IHF-A)
Analog Source Decoding
40dB
Dolby Digital
55dB
DTS
55dB
Frequency Response
10Hz – 100kHz (+0/-3dB @ 1 watt)
High Instantaneous Current Capability (HCC)
± 25 Amps
Transient Intermodulation Distortion (TIM)
Unmeasurable
Rise Time
16 µsec
Slew Rate
40V/µsec
Surround Modes
Dolby Digital, DTS surround, H/K's 5.1 Logic 7 Cinema/Music modes, VMAx
Digital Inputs (coaxial/optical)
6
Digital Output
2
Width
17.3 inch (440mm)
Height
6.5 inch (165mm)
Depth
17.1 inch (435mm)
Weight
31 lb (14.1kg)
Dimensions (H x W x D)
6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response
10Hz – 8MHz (-3dB)
Frequency Range
AM... 520 – 1710kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3 µV/13.2dBf
Signal-to-Noise Ratio
FM... 70/68 dBA (Mono/Stereo)
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion (Mono/Stereo)
FM... 0.2%/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Tuner Output Level
FM... 1kHz, ±75kHz Dev 500mV
