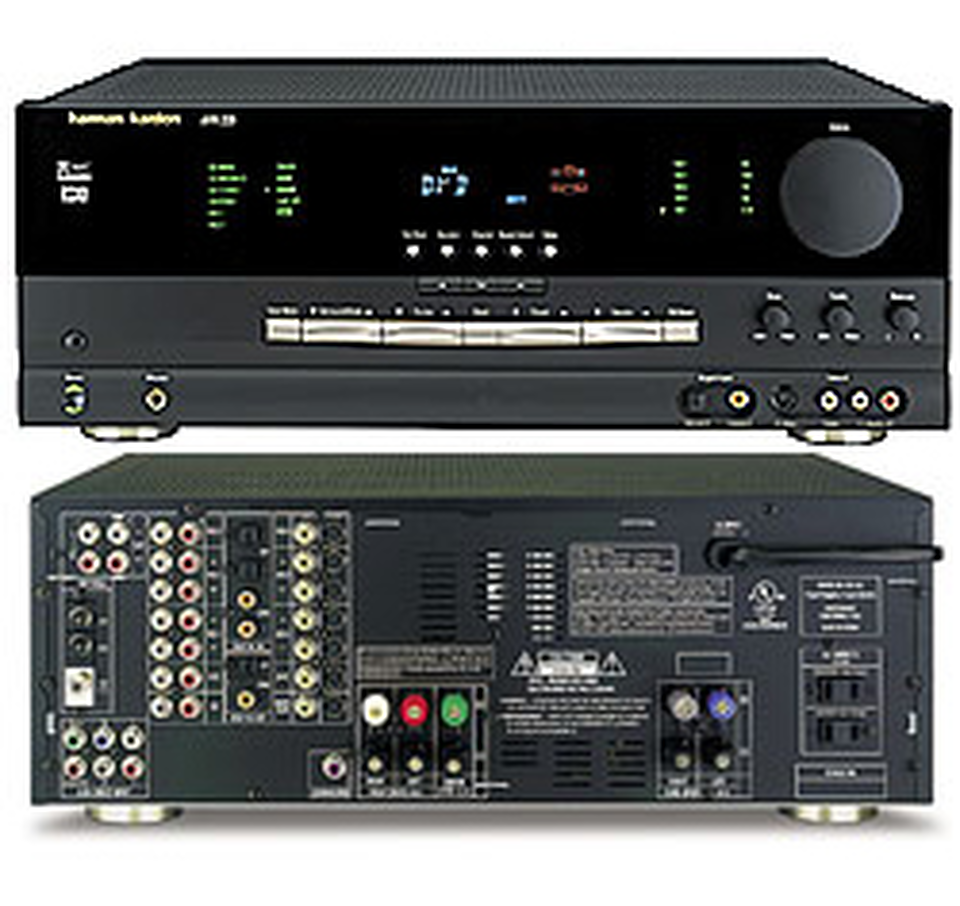

AVR 220

Power Requirements

AC 120V/60Hz

Power Consumption

68 Watts idle, 540 watts maximum (2 channels driven)

MSRP U.S.

$549.95 each

Continuous Average Power (FTC) per Channel (stereo mode)

55 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Front L & R Channels

45 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel

45 Watts @ < 0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels

45 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance

200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio

95dB (IHF-A)

Analog Source Decoding

45dB

Dolby Digital

55dB

DTS

55dB

Frequency Response

10Hz – 100kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM)

Unmeasurable

Slew Rate

40V/µsec

Weight

31 lb (14.1kg)

Dimensions (H x W x D)

6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)

Television Format

NTSC

Input Level/Impedance

1Vp-p/75 ohms

Output Level/Impedance

1V/75 ohms

Video Frequency Response

10Hz – 8MHz (–3dB)

Frequency Range

FM... 87.5 – 108MHz

Frequency Range

AM... 520 – 1720kHz

Signal-to-Noise Ratio

AM... 45dB

Usable Sensitivity

FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio

FM... 70/68 dBA (Mono/Stereo)

Usable Sensitivity

AM... Loop 500µV

Distortion

AM... 1kHz, 50% Mod 0.8%

Distortion (Mono/Stereo)

FM... 0.2/0.3%

Selectivity

AM... ± 10kHz, 30dB

Stereo Separation

FM... 40dB @ 1kHz

Selectivity

FM... ± 400kHz, 70dB

Image Rejection

FM... 80dB

IF Rejection

FM... 90dB

High Instantaneous Current Capability (HCC)

± 28 Amps
