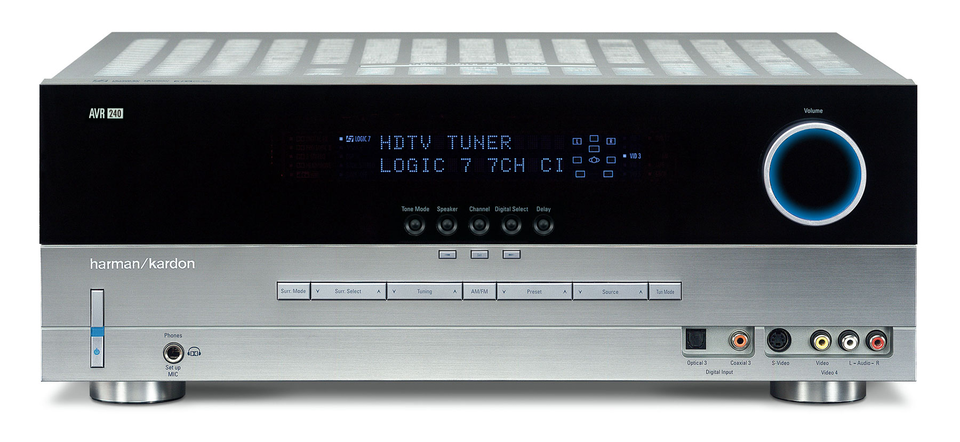

AVR 240

AVR 240

Audio/Video Receiver With Dolby Digital & DTS (65 watts x 2 | 50 watts x 7)

2005から2006まで販売

従来/現行製品: AVR 235
後継製品: AVR 245
Made in: China

ドキュメントとダウンロード

製品仕様

Power Requirements
AC 220 – 240V / 50Hz
Power Consumption
118W idle, 890W maximum (7 channels driven)
Digital Inputs (coaxial/optical)
2/2 on rear; 1/1 on front
Analog Inputs
1 A/V on front panel
Analog Inputs
2 audio-only
Analog Inputs
4 A/V on rear panel
Analog Inputs
6-/8-channel input
Analog Inputs
tuner
On-Screen Display
Yes
Multizone Capability
No
Auto Setup
EzSet remote
Remote Control
Eight-device, programmable remote
MSRP U.S.
$599.95 each
# of Amplifier Channels
7
Continuous Average Power (FTC) per Channel (stereo mode)
65 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
Front L & R Channels
50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Center Channel
50 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Surround Channels (L & R Side, L & R Back)
50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
Input Level/Impedance
200mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
100dB (IHF-A)
Surround System Adjacent Channel Separation:
Dolby Pro Logic I and II
40dB
Dolby Digital
55dB
DTS
55dB
Frequency Response
10Hz – 130kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
Unmeasurable
Slew Rate
40V/µsec
Width
17.3 inch (440mm)
Height
5.9 inch (150mm)
Depth
13.8 inch (350mm)
Weight
24.4 lb (13.9kg)
Dimensions:
Television Format
PAL/NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response:
Composite and S-Video
10Hz – 8MHz (–3dB)
Component Video
10Hz – 50MHz (–3dB)
Frequency Range
AM... 520 – 1720kHz
Frequency Range
FM... 87.5 – 108.0MHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity
FM... IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio
FM... Mono/Stereo 70/68dB
Usable Sensitivity
AM... Loop 500µV
Distortion
AM... 1kHz, 50% Mod 0.8%
Distortion
FM... Mono/Stereo 0.2/0.3%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @ 1kHz
Selectivity
FM... ± 400kHz, 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Amplifier Power (RMS)
50 x 7 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
High Instantaneous Current Capability (HCC)
± 35 Amps
