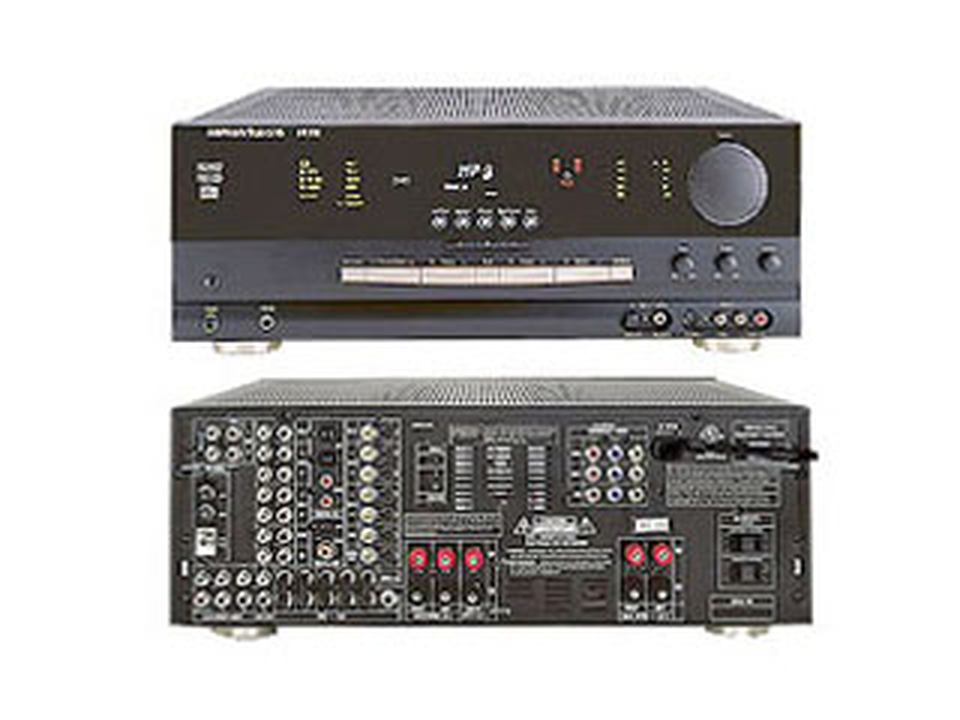

AVR 510

Audio/Video Receiver With Dolby Digital & DTS (80 watts x 2 | 70 watts x 5)

2000から2001まで販売

従来/現行製品:	AVR 500
後継製品:	AVR 520
Made in:	Hong Kong

ドキュメントとダウンロード

その他

製品仕様

仕様一覧

Power Requirements: AC 120V/60Hz

Power Consumption: 78 Watts idle, 694 Watts maximum (2 channels driven)

MSRP U.S.: $999.95 each

オーディオ仕様

Continuous Average Power (FTC) per Channel (stereo mode): 80 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms

Front L & R Channels: 70 Watts per channel @ < 0.07% THD, 20Hz – 20kHz into 8 ohms

Center Channel: 70 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Surround Channels: 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 95dB (IHF-A)

Analog Source Decoding: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 10Hz – 100kHz (+0/-3dB @ 1 watt)

High Instantaneous Current Capability (HCC): ± 45 Amps

Transient Intermodulation Distortion (TIM): Unmeasurable

Rise Time: 16 µsec

Slew Rate: 40V/µsec

Surround Modes: Dolby Digital, DTS surround, Harman's Logic 7, VMAx & EzSet

Digital Inputs (coaxial/optical): 6

Digital Output: 2

サイズ

Width: 17.3 inch (440mm)

Height: 6.5 inch (165mm)

Depth: 17.1 inch (435mm)

Weight: 35 lb (15.9kg)

Dimensions (H x W x D): 6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)

ビデオ仕様

Television Format: NTSC

Input Level/Impedance: 1Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response: 10Hz – 8MHz (-3dB)

Tuner Specifications

Frequency Range: AM... 520 – 1710kHz

Frequency Range: FM... 87.5 – 108MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3 µV/13.2dBf

Signal-to-Noise Ratio: FM... 70/68 dBA (Mono/Stereo)

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod 0.8%

Distortion (Mono/Stereo): FM... 0.2%/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Tuner Output Level: FM... 1kHz, ±75kHz Dev 500mV

The AVR 510 delivers the performance you expect from Harman Kardon without sacrificing ease of use. The patented EzSet; remote control takes the guesswork out of speaker setup, and sophisticated surround processing technologies deliver a variety of listening options. 192kHz/24-bit DACs insure compatibility with the latest program sources, while front-panel digital inputs, one of which can be switched to an output, deliver maximum flexibility. Component video, S-Video and multiroom/multisource connections make the AVR 510 one of the most versatile models ever offered by Harman Kardon.
