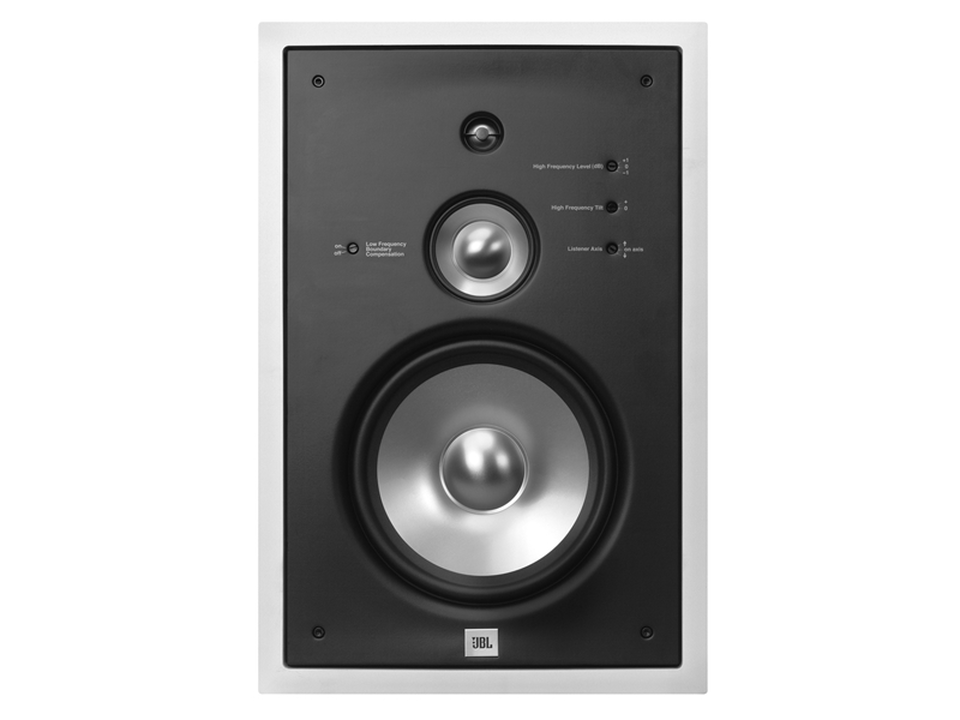

PERFORMANCE P941
3-Way 9 inch (225mm) In-Wall Speaker
2005から2009まで販売
| Made in: | Mexico |
|---|
ドキュメントとダウンロード
製品仕様
- Recommended Amplifier Power (RMS)
- 15W – 200W
- Nominal Impedance
- 8 ohms
- Sensitivity (2.83 volts @ 1 meter)
- 89dB
- Frequency Response
- 32Hz – 20kHz (-6db)
- Crossover Frequency(ies)
- 300Hz, 2kHz; 24dB/Octave
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm) Pure-titanium dome
- Midrange Transducer
- 3-1/2 inch
- Low-Frequency Transducer (Woofer)
- 9 inch OCC (Organic Ceramic Composite)
- Baffle
- Cast aluminum
- Port
- None
- Network
- SSP (Straight-Line Signal Path)
- Grille Material and Finish
- Gray cloth with metal wire frame
- Terminals
- 5-Way, gold-plated binding posts
- Finish
- Black
- MSRP U.S.
- $1649.95 each
- Weight
- 15 lb/7kg
- Dimensions (H x W x D)
- 20-5/8 inch x 13-9/16 inch x 3-1/2 inch (515mm x 345mm x 89mm)
- Cutout Dimensions
- 19-1/8 inch x 12-1/2 inch (486mm x 318mm)
The JBL P941 is the most refined in wall loudspeaker system to ever bear the JBL brand mark. The Speaker system is a 3 way 9 “ design using fourth order crossovers for exceptional detail and quality components throughout usually found only in high end in-room loudspeakers. The aluminum front baffle is inert and resistant to resonances when used with the included proprietary frame mount that is installed into the wall. The speaker may be used as a dedicated primary music speaker, superb background music speaker or in and a multi-channel music and move system. The P941 is an unbelievable buy and quantities are very limited.
