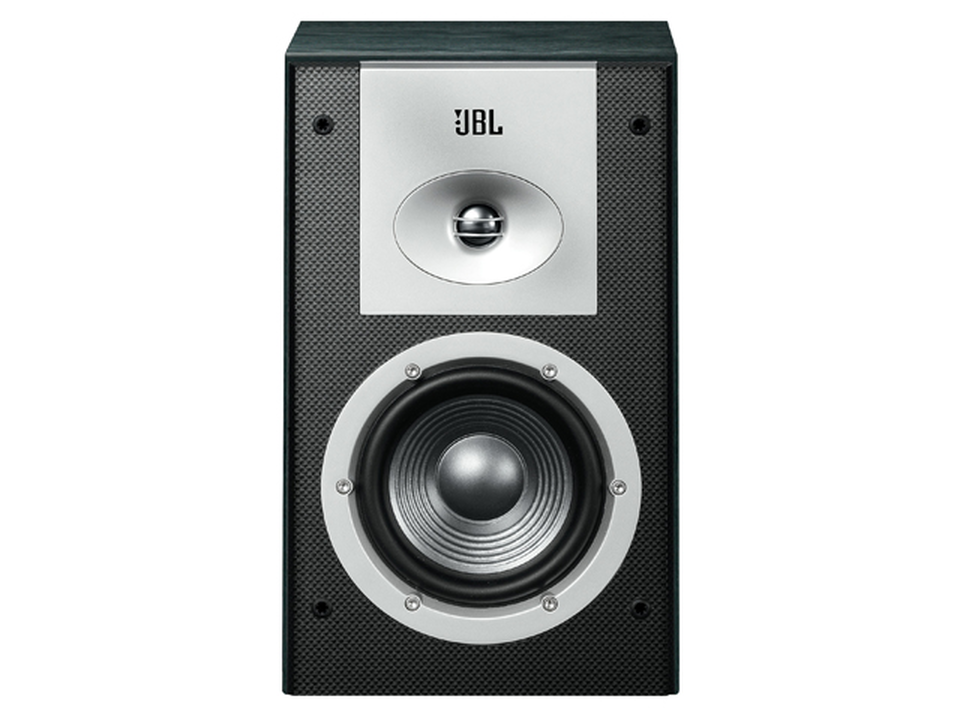

VENUE MONITOR

2-Way, 5 inch (130mm) Bookshelf Speakers

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 563.65 KB

その他

DIY Troubleshooting (英語) 101.87 KB

製品仕様

仕様一覧

Recommended Amplifier Power (RMS): 125 Watts

Power Handling (peak): 240 watts

Recommended Amplifier Power (RMS): 60 watts

Nominal Impedance: 8 ohms

Sensitivity (2.83 volts @ 1 meter): 86dB

Frequency Response: 68Hz – 20kHz (-3dB)

Crossover Frequency(ies): 3000Hz

High-Frequency Transducer (Tweeter): 3/4 inch (19mm) Titanium-laminate dome, shielded

Low-Frequency Transducer (Woofer): 5 inch (130mm) PolyPlas, shielded

MSRP U.S.: $199.95 per pair

サイズ

Weight: 7 lb (3.2kg) (per speaker)

Dimensions (H x W x D): 10-7/8 inch x 6 inch x 8-5/8 inch (275mm x 153mm x 219mm)

The Venue; series Monitor is the ideal choice for a home, office or dorm room stereo system where space is limited, but outstanding performance is demanded. Monitor is also the perfect choice for main or surround speakers in a home theater system. Monitor performs like a pro, utilizing technology derived directly from JBL's Professional products. Equipped with JBL's tried-and-true titanium-laminate tweeters and PolyPlas; woofers, the speaker reproduces the high notes with extreme clarity. The lows and mids, assisted by the FreeFlow; flared port, are loud and clear, without unwanted distortion or boominess. The Elliptical Oblate Spheroidal; (EOS) waveguide ensures that every seat is the best seat in the house for sweet music and intelligible dialogue, or for just rocking out.
