ALPHA CENTER

2-Way Dual 5-1/4 inch Center Channel Loudspeaker

ドキュメントとダウンロード

マニュアル

Owners Manual (Multilingual) 189.29 KB

その他

DIY Troubleshooting (英語) 49.1 KB

製品仕様

仕様一覧

Finish: Black Wood Grain, Beech, Cherry

Technology: CMMD

Frequency Response: 55Hz – 22kHz (±3dB)

Recommended Amplifier Power (RMS): 10 – 100 watts

Sensitivity (2.83 volts @ 1 meter): 89dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 3,000Hz; 24dB/octave

Low-Frequency Transducer (Woofer): Dual 5 1/4 inch (130mm) CMMD

High-Frequency Transducer (Tweeter): 1 inch (25mm) CMMD

MSRP U.S.: $299.95 each

サイズ

Weight: 15.8 lb (7.2kg)

Dimensions (H x W x D): 7-1/8 inch x 16-1/2 inch x 8-1/2 inch (18.1cm x 42.0cm 21.5cm)

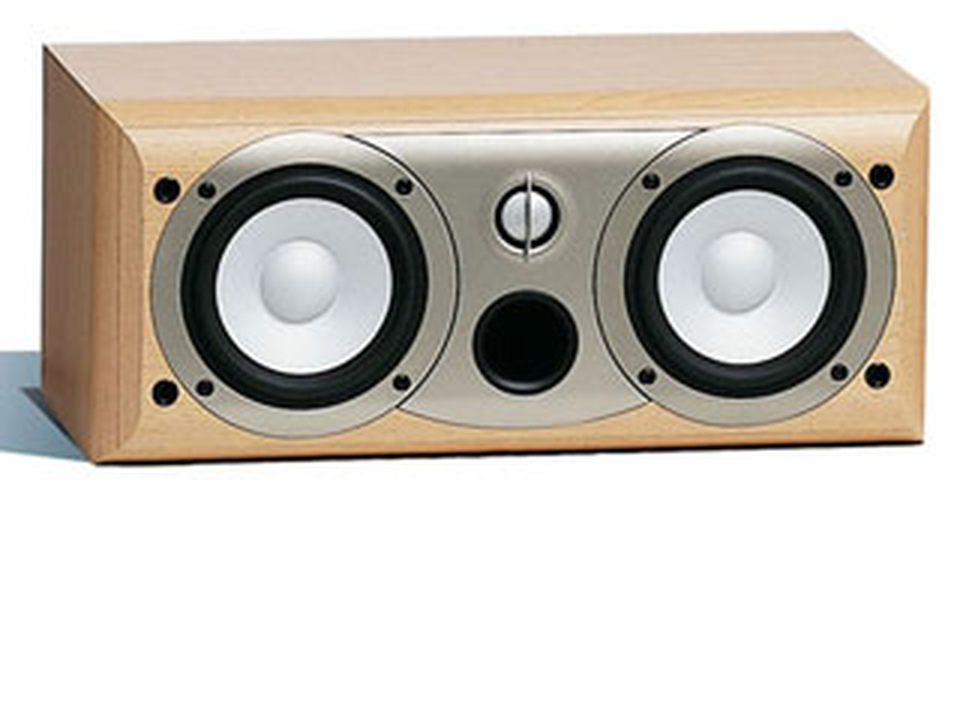

The Infinity Alpha Center center channel speaker is magnetically shielded and available in black, beech and cherry finishes. Infinity's patented Ceramic Metal Matrix Diaphragm (CMMD;) technology delivers accurate performance with dramatically reduced distortion for incredibly lifelike sound.
