PRELUDE MTS TOWER

Quadruple 5.25 inch 3-Way loudspeaker

ドキュメントとダウンロード

その他

DIY Troubleshooting (英語)

製品仕様

仕様一覧

Enclosure Design: Aluminum

Finish: Aluminum

Technology: CMMD

Sensitivity (2.83 volts @ 1 meter): 90dB

Nominal Impedance: 4 ohms (±1)

Low-Frequency Transducer (Woofer): 4 x 5-1/4 inch

Midrange Transducer: 3-1/2 inch

High-Frequency Transducer (Tweeter): 1 inch (25mm)

Recommended Amplifier Power (RMS): 25 – 500 watts

Frequency Response: 80 – 22kHz

MSRP U.S.: $2400 each

サイズ

Dimensions (H x W x D): 37 inch x 6-1/2 inch x 7-1/2 inch (940mm x 165mm x 191mm)

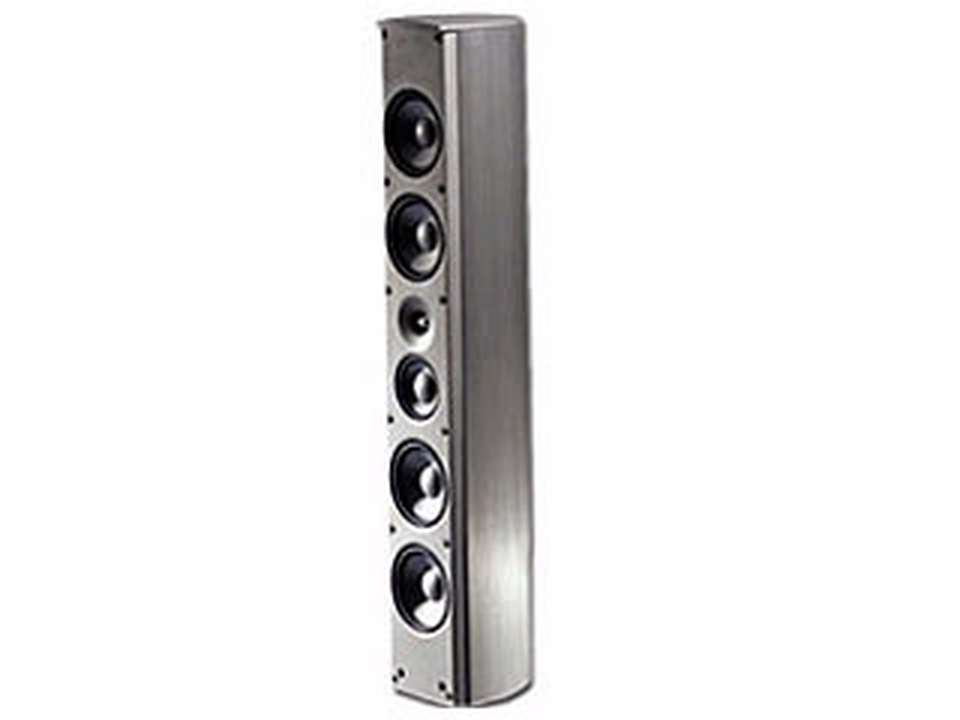

The brushed- and anodized-aluminum, primary transducer columns each house a magnetically shielded 1 inch CMMD; high-frequency transducer, 3-1/2 inch CMMD; midrange and four 5-1/4 inch CMMD; mid-bass drivers. Besides providing extreme rigidity and internal damping, the unique all-metal construction of the columns allows a narrow aspect ratio that helps eliminate diffraction.
