サポート / スピーカー / ステレオサラウンドサウンド / サテライト / サブシステム / SOUNDEFFECTS MUSIC 15

SOUNDEFFECTS MUSIC 15

3-Piece Sat / Powered Sub System (SAT 10, BASS 10)

1996から1996まで販売

従来/現行製品:	SOUNDEFFECTS MUSIC 1
Note:	Consists of Two SAT10 and One BASS15.

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 362.79 KB

製品仕様

仕様一覧

MSRP U.S.: $899.95 per system

ウーファー仕様

Subwoofer Transducer: TWO (2) – 6.5 inch

Frequency Response: 40Hz – 150Hz

Crossover Frequency(ies): 150Hz

Sensitivity (1 watt @ 1 meter): 88dB

Recommended Amplifier Power (RMS): 100 watts

サテライトスピーカー仕様

Recommended Amplifier Power (RMS): 80 watts, per speaker

Nominal Impedance: 8 ohms

Low-Frequency Transducer (Woofer): 3.5 inch neodymium magnet

High-Frequency Transducer (Tweeter): .75 inch (19mm) titanium composite

Frequency Response: 150Hz – 20kHz

Crossover Frequency(ies): 3.5kHz

Sensitivity (1 watt @ 1 meter): 88dB

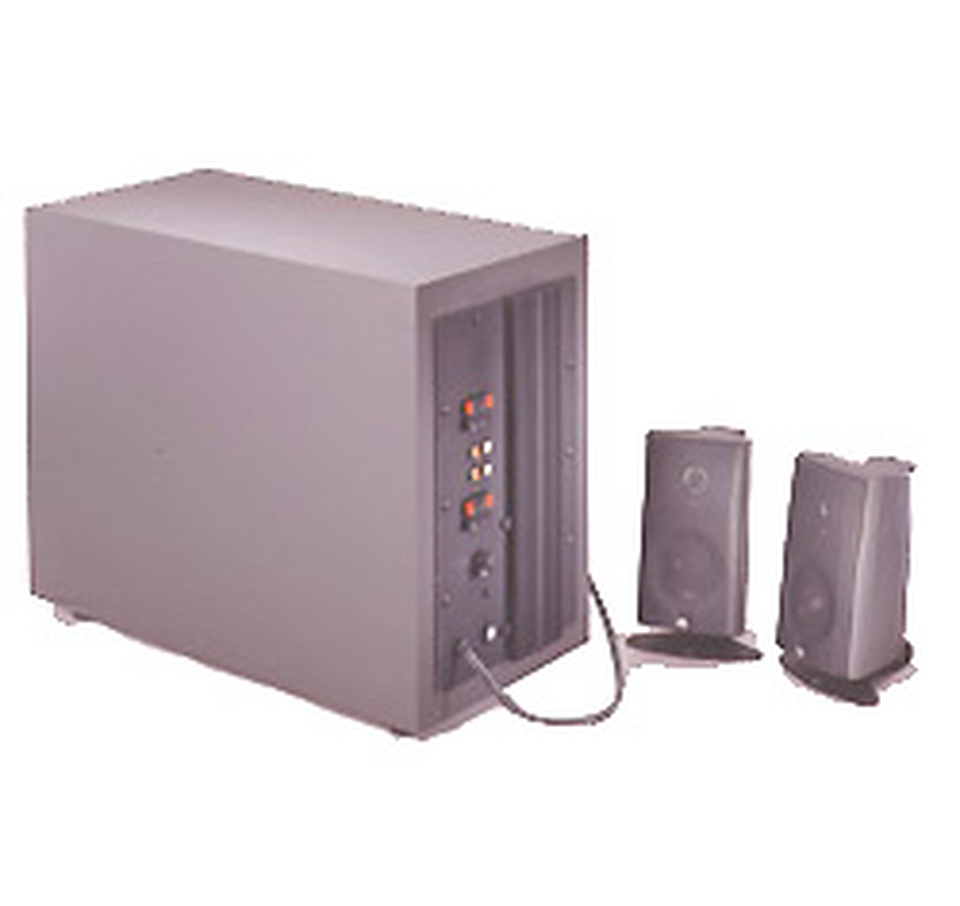

JBL's innovation and dedication to audio are evident in this 3-piece subwoofer/satellite system. An impressive, 80-watt-per-channel power-handling capability, titanium-composite tweeters and 100-watt powered subwoofer contribute to a thrilling audio experience. Prior season's model.
