SOUNDEFFECTS MUSIC 2

3-Piece Sat / Powered Sub System (SAT 2, BASS 2 BASSWAVE)

1993から1995まで販売

従来/現行製品:	PRO 3 PLUS
後継製品:	SOUNDEFFECTS MUSIC 20
Note:	- Consists of Two SAT2 and One BASS2 or BASSWAVE. - See Service Bulletin/Misc for Basswave/Bass2 Tech Sheet.

ドキュメントとダウンロード

マニュアル

マニュアル（日本語） (英語) 1.11 MB

その他

DIY Troubleshooting (英語) 317.91 KB

製品仕様

仕様一覧

MSRP U.S.: $949.95 per system

ウーファー仕様

Subwoofer Transducer: TWO (2) – 5.25 inch shielded

Frequency Response: 40Hz – 120Hz

Crossover Frequency(ies): 120Hz

Sensitivity (1 watt @ 1 meter): 90dB

Recommended Amplifier Power (RMS): 100 watts

Input Impedance: 1k ohms

サテライトスピーカー仕様

Nominal Impedance: 8 ohms

Recommended Amplifier Power (RMS): 10w – 120w

Frequency Response: 120Hz – 20kHz (±3dB)

Sensitivity (1 watt @ 1 meter): 90dB

Crossover Frequency(ies): 3.5kHz (nominal)

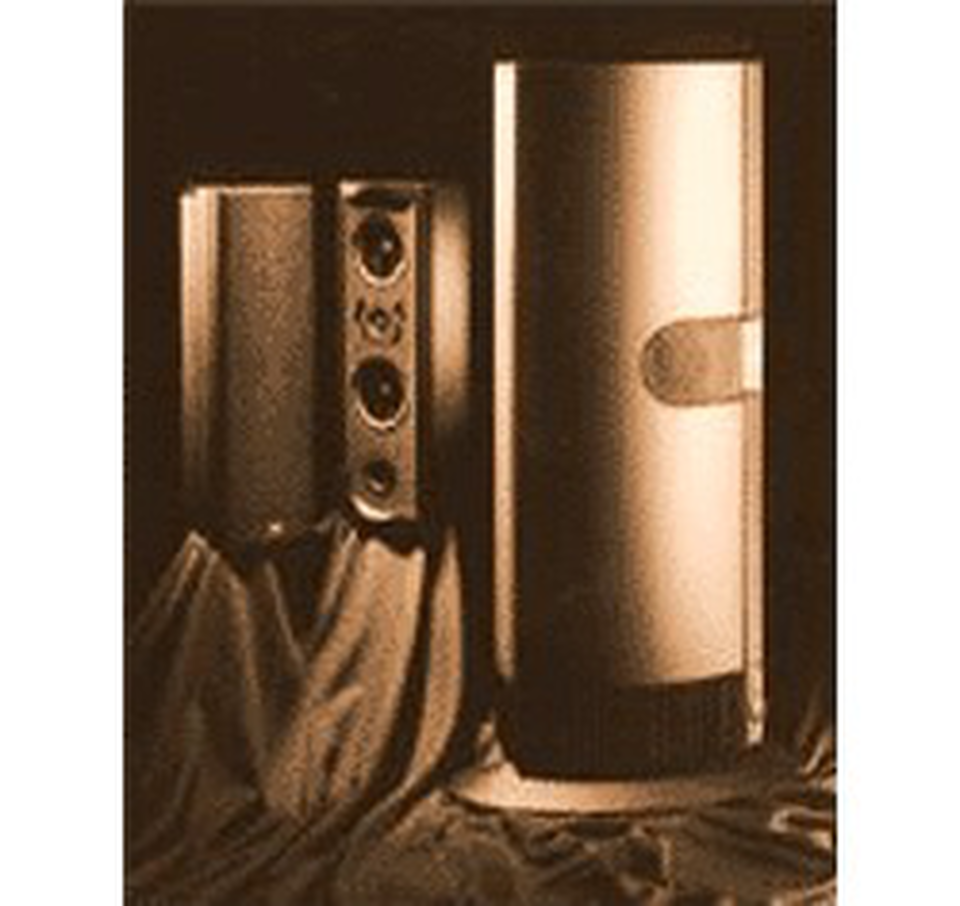

A 3-Piece Satellite/Powered Subwoofer System that'll Rock and Roll. The two-way satellites feature a titanium tweeter and a 3-1/2 inch midrange. The subwoofer amplifier delivers over 100W RMS to two 5-1/4 inch woofers. This system can turn a moderate-sized receiver into a powerhouse.
