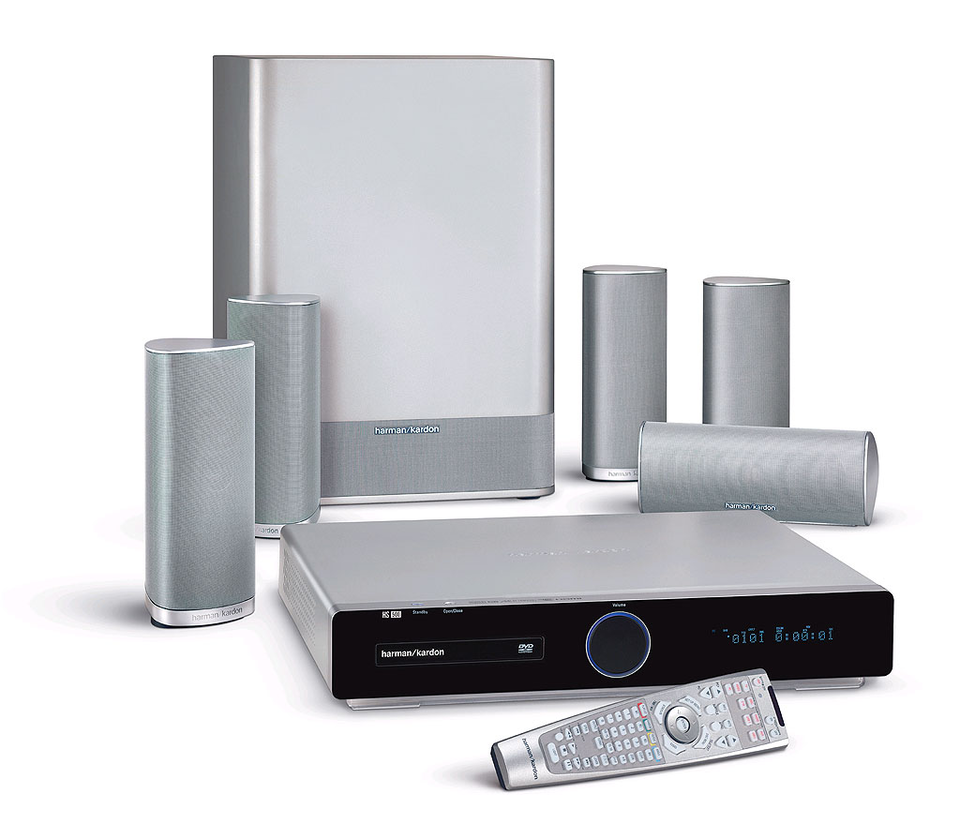

HS 500
5.1-Channel Integrated Home Theater System
Documentos y descargas
Especificaciones del producto
- Power Requirements
- AC 120V, 50Hz
- Power Consumption
- 3W Standby, 500W maximum, all channels driven
- Shipping Weight (System, Accessories, Packing)
- 97.5 lb (44.3kg)
- Amplifier Power (RMS)
- 65 Watts per channel, 20Hz – 20kHz, <0.5% THD into 6 ohms
- Line Output
- 1 Vrms, 1 kilohm
- Frequency Response
- DVD-Audio (5-channel)... 2Hz – 48kHz, (±0.5dB)
- Frequency Response
- DVD (linear PCM)... 2Hz – 22kHz, (±0.5dB) (48kHz sampling)
- Signal-to-Noise Ratio
- >115dB (A-weighted)
- Total Harmonic Distortion
- 0.0025%
- Dynamic Range
- DVD-Audio... 115 dB (24 Bit)
- Dynamic Range
- DVD... 105dB (20-bit)
- Dynamic Range
- CD... 100dB
- Channel Separation
- >90dB
- Weight
- 10.6 lb (4.8kg)
- Dimensions (H x W x D)
- Source Unit (See HKTS 14 for speaker specs)... 3-3/16 inch x 17-15/16 inch x 15-3/4 inch (81mm x 456mm x 400mm)
- Carton Dimensions (H x W x D)
- 37-1/2 inch x 21 inch x 20 inch (953mm x 533mm x 508mm)
- HDMI
- Video... 480p, 720p, 1080i HDMI Version 1.0-compliant HDCP Version 1.1-compliant
- Component Video Output
- Y = 1 Vp-p/75 ohms, sync negative polarity
- Component Video Output
- Pr (V) = 0.7 Vp-p/75 ohms
- Component Video Output
- Pb (U) = 0.7
- Component Video Output
- Vp-p/75 ohms
- Composite Video Output
- 1 Vp-p/75 ohms
- S-Video Output
- Y/Luminance = 1 Vp-p/75 ohms
- S-Video Output
- C/Chrominance = NTSC 0.286 Vp-p/75 ohms
- Frequency Range
- AM... 520 – 1720kHz
- System
- FM... PLL quartz-locked digital synthesizer system
- Signal-to-Noise Ratio
- AM... 45dB
- Tuning Range
- FM... 87.50 – 108.00MHz
- Antenna Terminals
- FM... 75 ohms, unbalanced
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Intermediate Frequency
- FM... 10.7MHz
- Selectivity
- AM... ± 10kHz, 30dB
- Pickup
- DVD... Semiconductor laser, wavelength 650nm
- Video Signal System
- DVD... NTSC
- Signal-to-Noise Ratio
- DVD... >60dB (DVD Video)
- Video Signal Vertical Resolution
- DVD... >480 Lines (DVD)
- Frequency Response
- DVD (PCM)... 20Hz – 22kHz (±1dB)
- Frequency Response
- CD... 20Hz – 20kHz (±1dB)
- Signal-to-Noise Ratio
- DVD... >80dB (PCM Audio)
- Total Harmonic Distortion
- DVD... <0.01% (PCM)
- Dynamic Range - DVD (PCM)
- DVD... >85dB (EIAJ, 2kHz)
- Dynamic Range - CD
- DVD... >85dB (EIAJ)
Does your high-definition video display hunger for high-quality content? The HS 500 feeds that demand and complements stunning images with powerful sound. Thanks to pixel-by-pixel processing and upscaling to 720p or 1080i through an HDMI™ output, your DVDs never looked better. As an integrated system, the HS 500 also plays a variety of media formats, including DVD- Audio, and popular image and sound files from either CD or DVD recorded discs or via USB drives and connections. Add a powerful amplifier, accurate, seamless surround imaging through the five two-way speakers and deep bass from a 10-inch woofer with a 200-watt amplifier, and your HD pictures become a complete home entertainment system.
