KP 1

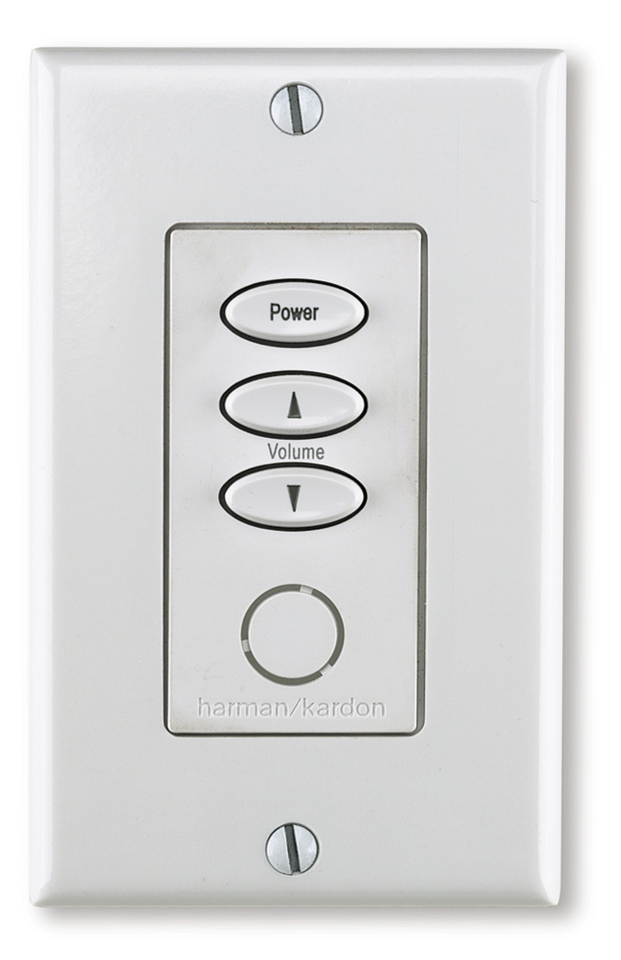

In-Wall Keypad For PA4000 Amplifier

Documentos y descargas

Manuales

Owners Manual (English) 122.77 KB

Otros

Product Brochures (English) 174.13 KB

Especificaciones del producto

Características generales

Mounting System: Compatible with most standard electrical junction boxes or use with a plaster ring. Designed for use with user-supplied, Decora-style cover-plate.

Connections: 8P8C RJ-45 Jack; 3-Pin Eurostyle Terminal Block

Wiring Protocols: RJ-45 modular jack 8P8C per TIA wiring specifications for T568B straight-through wiring using CM- or CP-rated Category 3 or 5 UTP, 8-pin, 8-conductor wiring, minimum 24AWG. For runs over 250 feet, thicker CL2/CL3, 4 pair, 22AWG wire may be required to preserve signal integrity. See owner's manual for further details.

Wiring Protocols: 3-pin output from optional IR sensor with conductors for Signal, Ground and +12 Volts

Recommended Third-Party Optional Infrared Sensor: Xantech Micro Link Model 490-00

MSRP U.S.: $49.95 each

Medidas

Weight: 0.25 lb (0.11kg)

Dimensions (H x W x D): 4 inch x 1-5/8 inch x 1-9/16 inch (103mm x 41.2mm x 40.1mm)

Cutout Dimensions: 1/2 inch (12.7mm) Cutout for Third-Party Optional IR Sensor

Let the KP 1 power up the PA 4000 multichannel amplifier and control speaker volume in any room in your home. Use with a Decora-style faceplate (not included) to blend with any room the KP 1 mounts in standard electrical junction boxes. When used with optional third-party IR sensors, you can also control functions of Harman Kardon DVD and CD players as well as A/V receivers.
