INTERMEZZO 2.6P

6-1/2 inch 2-Way Bookshelf

Documentos y descargas

Manuales

Owners Manual (English) 339.92 KB

Otros

DIY Troubleshooting (English) 58.5 KB

Especificaciones del producto

Características generales

Enclosure Design: Aluminum

Finish: Aluminum

Technology: CMMD

Frequency Response: 48Hz – 22kHz (±3dB)

Frequency Response: 59Hz – 20kHz (±1.5dB)

Nominal Impedance: 8 ohms

Sensitivity (2.83 volts @ 1 meter): 90dB

Recommended Amplifier Power (RMS): 25 – 150 watts

Total Harmonic Distortion: <1% (2nd- and 3rd- Harmonic Distortion (48Hz – 20kHz @95dB SPL))

Crossover Frequency(ies): 2,000Hz; 24dB/Octave

MSRP U.S.: $1500 per pair

Medidas

Weight: 20 lb (8.2kg)

Dimensions (H x W x D): 15 inch x 9-3/4 inch x 11-1/2 inch (381mm x 248mm x 292mm)

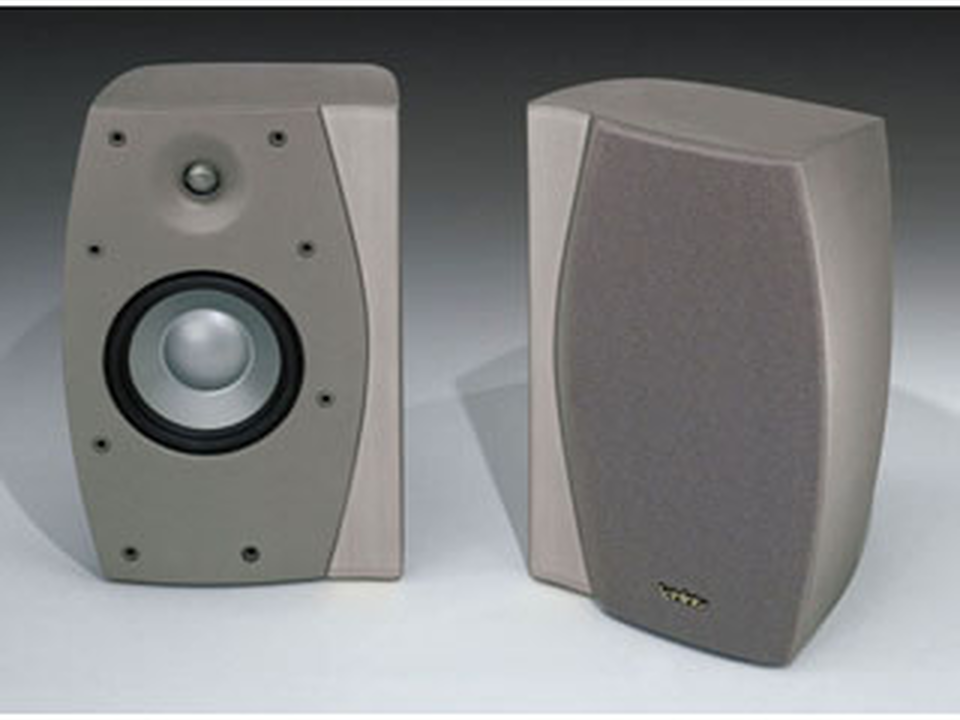

The Intermezzo 2.6p is ideal for those applications where a passive loudspeaker is required. It delivers exceptional bass response below 50Hz and a smooth, accurate sound throughout the entire frequency range. The Intermezzo 2.6p incorporates Infinity's proprietary Ceramic Metal Matrix Diaphragm (CMMD;) technology to eliminate unwanted resonances and deliver clear, undistorted sound. The Intermezzo 2.6p includes gold-plated, bi-wirable binding posts, and is magnetically shielded.
