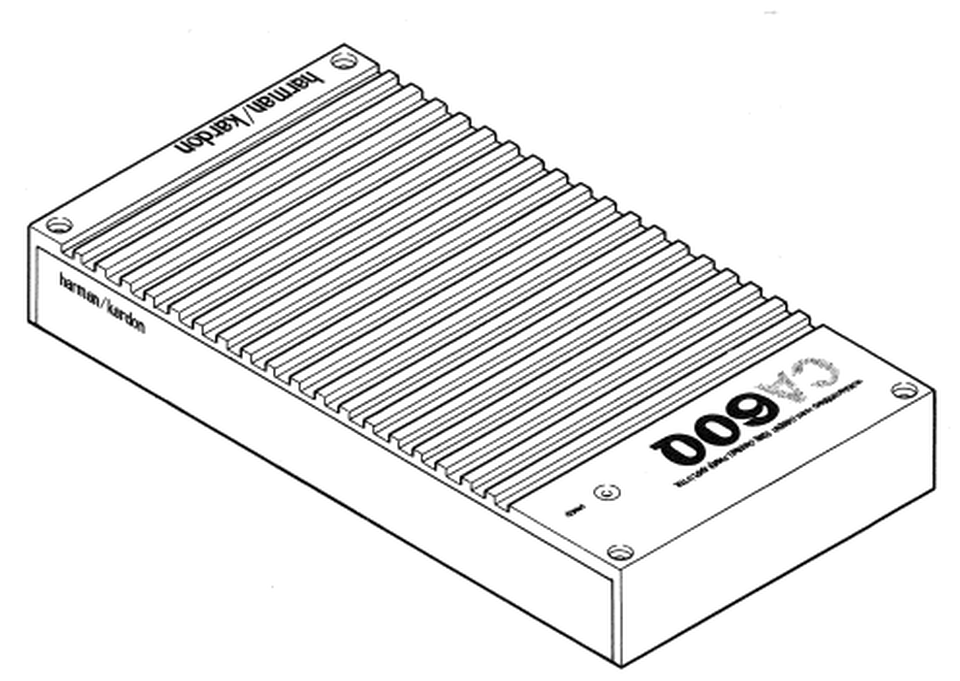

CA 60Q
4-Channel Car Audio Amplifier (15 watts x 4)
Sold from 1991 until 1993
| Made in: | Japan |
|---|
Documents & Downloads
Product Specifications
- Output 4 Ohms
- 15 watts RMS x 4, 20 – 20kHz
- High Instantaneous Current Capability (HCC)
- ± 10 Amps
- Total Harmonic Distortion
- no more than 0.2% (4 ohms)
- Negative Feedback
- 25dB
- Power Bandwidth
- 10Hz – 100kHz
- Frequency Response
- 10Hz – 100kHz (±3dB @ 1 watt)
- Signal-to-Noise Ratio
- 100dB
- Input Level/Impedance
- 250mV/22k ohms (variable)
- Power Supply
- DC +14.4V (11-16V usable), negative ground
- Power Requirements
- AT IDLE – 0.6A
- Power Requirements
- FULL POWER MUSIC SIGNAL – 2.4A (4 ohms/ch)
- Power Requirements
- FULL POWER SINE WAVE – 7.2A (4 ohms/ch)
- MSRP U.S.
- $319.95 each
