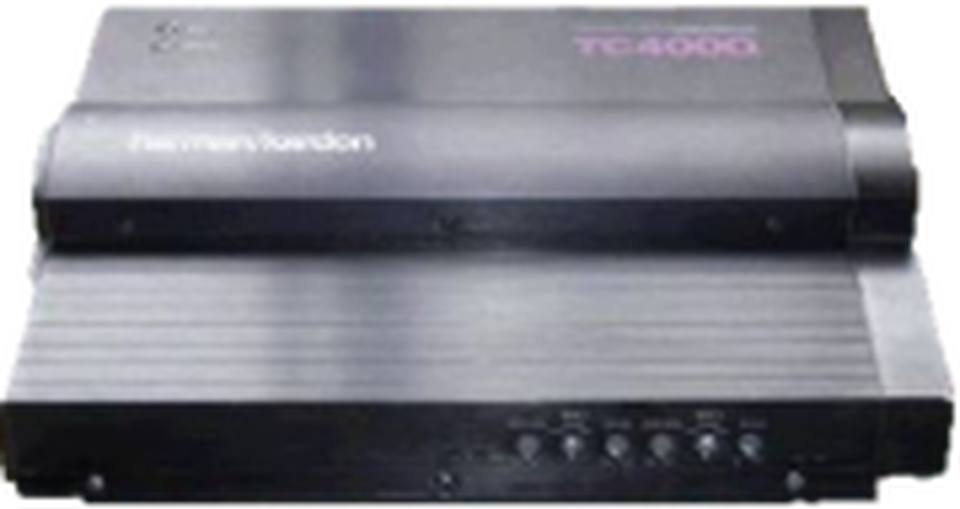

TC 400Q
4-Channel Car Audio Amplifier (70 watts x 4)
Sold from 1991 until 1993
| Successor Product: | CA 470 |
|---|
Documents & Downloads
Product Specifications
- Amplifier Power (RMS)
- 100W x 4 channels @ 2 ohms
- Amplifier Power (RMS)
- 280W x 2 channels @ 4 ohms
- Amplifier Power (RMS)
- 70W x 4 channels @ 4 ohms
- High Instantaneous Current Capability (HCC)
- ± 50 Amps
- Total Harmonic Distortion
- no more than 0.1% @ 4 ohms & 0.2% @ 2 ohms
- Negative Feedback
- 25dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB)
- Signal-to-Noise Ratio
- 100dB (ref to rated power)
- Input Sensitivity
- 0.25V to 2.5V, continuously variable
- Input Impedance
- CENTER PIN CONNECTOR (+) – 22k ohms OUTSIDE SHEILD – 22k ohms
- Power Supply
- DC +14.4V (9-16V usable), negative ground
- Power Requirements
- AT IDLE – 6.0A
- Power Requirements
- FULL POWER MUSIC SIGNAL – 13.3A (4 ohms/channel), 20A (2ohms/channel)
- Power Requirements
- FULL POWER SINE WAVE – 40A (4 ohms/channel), 60A (2 ohms/channel)
- MSRP U.S.
- $999.95 each
