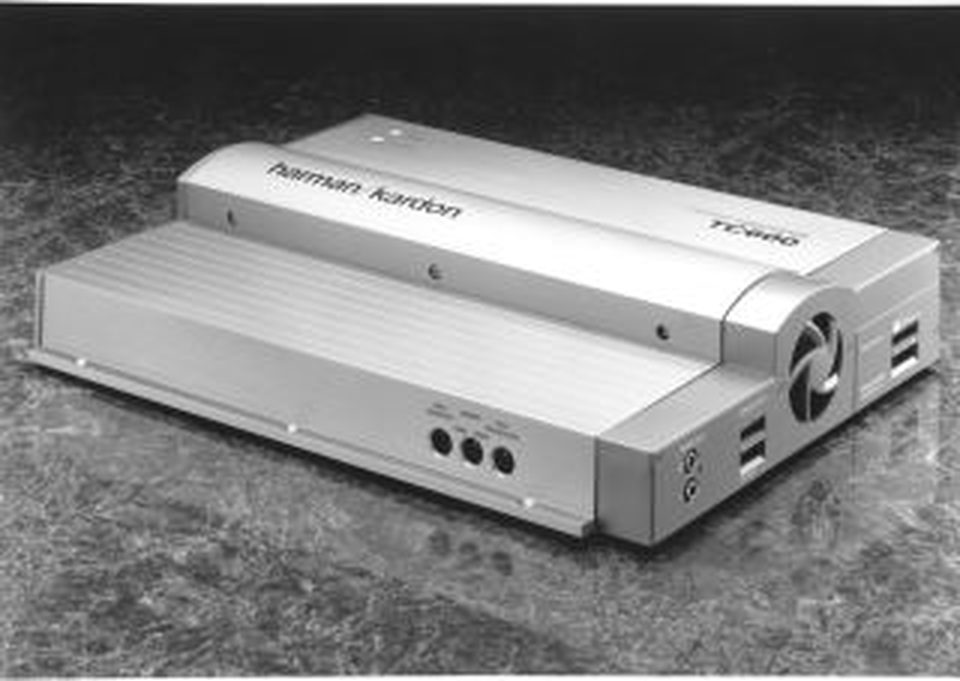

TC 600
2-Channel Car Audio Amplifier (200 watts x 2)
Sold from 1991 until 1993
Documents & Downloads
Product Specifications
- Amplifier Power (RMS)
- 200W x 2 channels @ 4 ohms
- Amplifier Power (RMS)
- 300W x 2 channels @ 2 ohms
- Amplifier Power (RMS)
- 600W x 1 channel @ 4 ohms
- High Instantaneous Current Capability (HCC)
- ± 100 Amps
- Total Harmonic Distortion
- no more than 0.1% @ 4 ohms & 0.2% @ 2 ohms
- Negative Feedback
- 25dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB)
- Signal-to-Noise Ratio
- 100dB (ref to rated power)
- Input Sensitivity
- 0.25V to 2.5V, continuously variable
- Input Impedance
- CENTER PIN CONNECTOR (+) – 22k ohms OUTSIDE SHIELD (-) – 22k ohms
- Power Supply
- DC +14.4V (9-16V usable), negative ground
- Power Requirements
- AT IDLE – 7.5A
- Power Requirements
- FULL POWER MUSIC SIGNAL – 20A (4 ohms/channel), 30A (2ohms/channel)
- Power Requirements
- FULL POWER SINE WAVE – 60A (4 ohms/channel), 90A (2 ohms/channel)
- MSRP U.S.
- $1300 each
