HS 150

2x 35W 2.1-channel integrated home theater system

Sold from 2008 until now

Product Specifications

General Specifications

Frequency Response: DVD (linear PCM)... 2Hz – 22kHz, (±0.5dB) (48kHz Sampling); “A”-weighted S/N ratio... >115dB; THD... 0.0025%; dynamic range... (DVD-Audio)... 115dB (24-bit); (DVD)... 105dB (20-bit); (CD)... 100dB; channel separation... >90dB

Power Requirements: AC 220V – 240V, 50Hz

Power Consumption: 3W Standby, 380W maximum, all channels driven

Audio Specifications

Amplifier Power (RMS): 35 Watts per channel, 20Hz – 20kHz, <0.5% THD into 6 ohms

Line Output: 2V rms, 1k ohm

Dimensions

Weight: 3.8kg

Dimensions (H x W x D): 98mm x 350mm x 277mm

Carton Dimensions (H x W x D): 946mm x 533mm x 508mm

Video Specifications

HDMI: Video... 480p, 720p, 1080i HDMI Version 1.0-compliant HDCP Version 1.1-compliant

Component Video Output: Y = 1 Vp-p/75 ohms, sync negative polarity

Component Video Output: Pr (V) = 0.7 Vp-p/75 ohms

Component Video Output: Pb (U) = 0.7

Component Video Output: Vp-p/75 ohms

Composite Video Output: 1 Vp-p/75 ohms

S-Video Output: Y/Luminance = 1 Vp-p/75 ohms

S-Video Output: C/Chrominance = PAL 0.3V Vp-p 75 ohm/NTSC 0.286 Vp-p/75 ohms

Tuner Specifications

System: FM... PLL quartz-locked digital synthesizer system including RDS

Tuning Range: FM... 87.50 – 108.00MHz

Antenna Terminals: FM... 75 ohms, unbalanced

Intermediate Frequency: FM... 10.7MHz

Disc Player Specifications

Pickup: DVD... Semiconductor laser, wavelength 650nm

Video Signal System: DVD... PAL, NTSC

Signal-to-Noise Ratio: DVD... >60dB (DVD Video)

Video Signal Horizontal Resolution: DVD... >480 lines (DVD)

Frequency Response: DVD (PCM)... 20Hz – 22kHz (±1dB)

Frequency Response: CD... 20Hz – 20kHz (±1dB)

Signal-to-Noise Ratio: DVD... >115dB (PCM Audio)

Total Harmonic Distortion: DVD... <0.0025% (PCM)

Dynamic Range - DVD (PCM): DVD... >115dB (EIAJ, 2kHz)

Dynamic Range - CD: DVD... >100dB (EIAJ)

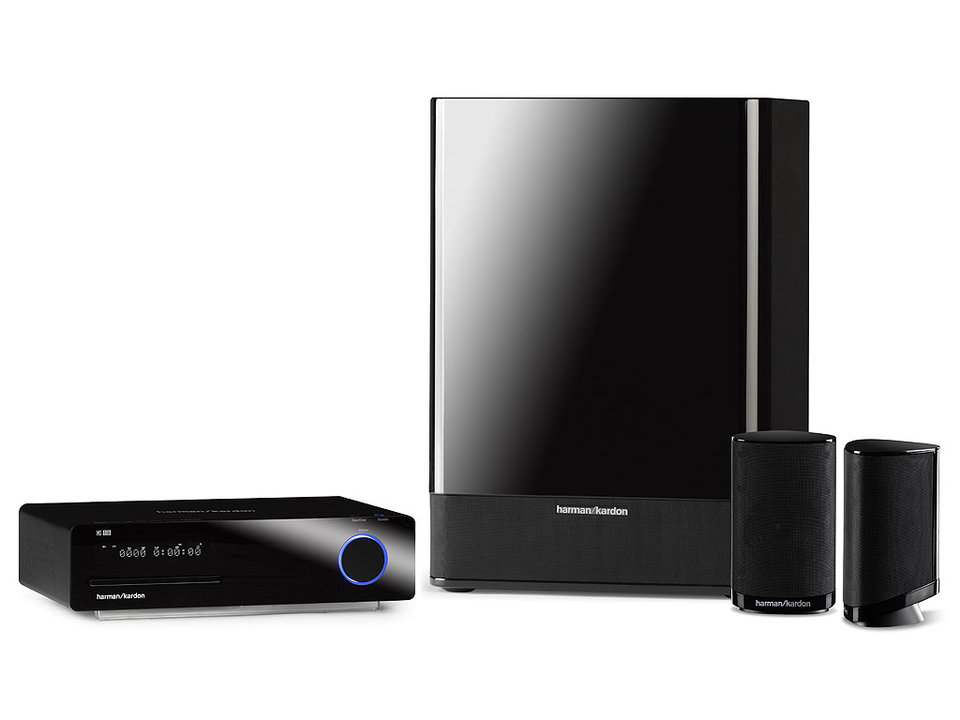

Small wonder. Dolby Virtual Speaker technology can create a realistic 5.1-channel listening experience from virtually any 2.1-channel system. But when that 2.1-channel system happens to be the HS 150 − with a pair of HKTS 3 speakers and a 100-watt powered subwoofer − the effect can only be described as spectacular. With a high-power amplifi er, progressive-scan video and MP3, JPEG and WMA playback, the HS 150 delivers high-performance home theater to even the smallest spaces.
