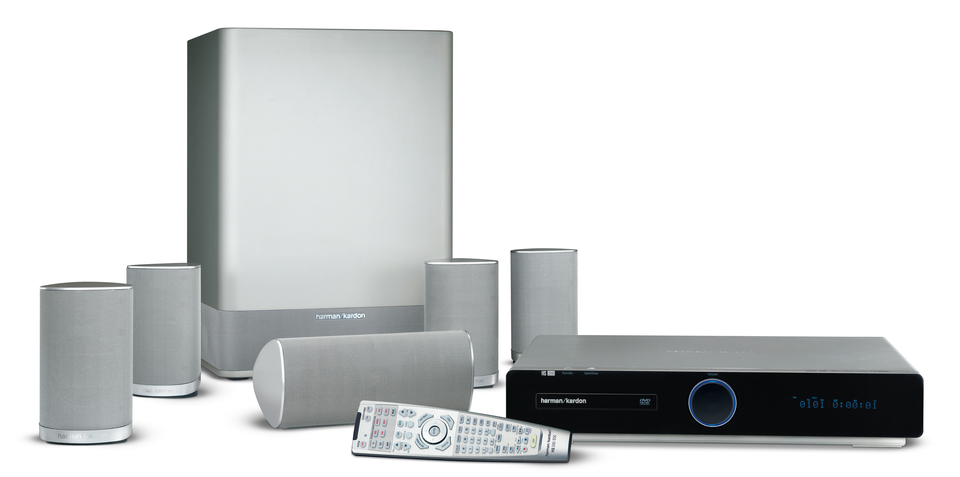

HS 300
Audio/Video Receiver with built-in DVD player & HKTS 11 (35 watts x 5)
Sold from 2006 until 2008
| Predecessor Product: | HS 100 |
|---|
Documents & Downloads
Product Specifications
- Power Requirements
- AC 120V, 60Hz
- Power Consumption
- 3W Standby, 380W maximum, all channels driven
- Shipping Weight (System, Accessories, Packing)
- 79.2 lb (36kg)
- MSRP U.S.
- $999.95 per system
- Amplifier Power (RMS)
- 35 Watts per channel, 20Hz – 20kHz, <0.5% THD into 6 ohms
- Line Output
- 1 Vrms, 1 K ohm
- Frequency Response
- DVD-Audio (5-channel)... 2Hz – 48kHz, (±0.5dB)
- Frequency Response
- DVD (linear PCM)... 2Hz – 22kHz, (±0.5dB) (48kHz sampling)
- Signal-to-Noise Ratio
- >115dB (A-weighted)
- Total Harmonic Distortion
- 0.0025%
- Channel Separation
- >90dB
- Dynamic Range
- DVD-Audio... 115 dB (24 Bit)
- Dynamic Range
- DVD... 105dB (20-bit)
- Dynamic Range
- CD... 100dB
- Weight
- 10.6 lb (4.8kg)
- Dimensions (H x W x D)
- Source Unit (See HKTS 11 for speaker specs)... 3-3/16 inch x 17-15/16 inch x 15-3/4 inch (81mm x 456mm x 400mm)
- Carton Dimensions (H x W x D)
- 36 inch x 21 inch x 20 inch (915mm x 533mm x 508mm)
- HDMI
- Video... 480p, 720p, 1080i HDMI Version 1.0-compliant HDCP Version 1.1-compliant
- Component Video Output
- Y = 1 Vp-p/75 ohms, sync negative polarity
- Component Video Output
- Pr (V) = 0.7 Vp-p/75 ohms
- Component Video Output
- Pb (U) = 0.7
- Component Video Output
- Vp-p/75 ohms
- Composite Video Output
- 1 Vp-p/75 ohms
- S-Video Output
- Y/Luminance = 1 Vp-p/75 ohms
- S-Video Output
- C/Chrominance = NTSC 0.286 Vp-p/75 ohms
- Frequency Range
- AM... 520 – 1720kHz
- System
- FM... PLL quartz-locked digital synthesizer system
- Signal-to-Noise Ratio
- AM... 45dB
- Tuning Range
- FM... 87.50 – 108.00MHz
- Antenna Terminals
- FM... 75 ohms, unbalanced
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Intermediate Frequency
- FM... 10.7MHz
- Selectivity
- AM... ± 10kHz, 30dB
- Pickup
- DVD... Semiconductor laser, wavelength 650nm
- Video Signal System
- DVD... NTSC
- Signal-to-Noise Ratio
- DVD... >60dB (DVD Video)
- Video Signal Vertical Resolution
- DVD... >480 Lines (DVD)
- Frequency Response
- DVD (PCM)... 20Hz – 22kHz (±1dB)
- Frequency Response
- CD... 20Hz – 20kHz (±1dB)
- Signal-to-Noise Ratio
- DVD... >80dB (PCM Audio)
- Total Harmonic Distortion
- DVD... <0.01% (PCM)
- Dynamic Range - DVD (PCM)
- DVD... >85dB (EIAJ, 2kHz)
- Dynamic Range - CD
- DVD... >85dB (EIAJ)
These days, music and images originate in a variety of sources, and the HS 300 brings them all to you with ease and elegance. In addition to a built-in upscaling DVD player with HDMI; output, DVD-Audio, MP3, WMA and JPEG file playback, a built-in FM/AM tuner and connections for external sources, the HS 300's front- and rear-panel USB jacks let you connect to a USB digital camera or ThumbDrive; for instant listening or viewing of compatible music and image files through the system's powerful amplifier and compact, yet accurate 5.1-channel speaker system. No matter where the program originates, it never looked or sounded better than when played through the HS 300.
