Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 78 Watts idle, 694 watts maximum (2 channels driven)
- MSRP U.S.
- $999.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 85 Watts per channel into 8 ohms @ 20Hz – 20kHz, <0.07% THD, both channels driven
- Front L & R Channels
- 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 75 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels
- 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Analog Source Decoding
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16µsec
- Slew Rate
- 40V/µsec
- Weight
- 35 lb (15.9kg)
- Dimensions (H x W x D)
- 6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 35MHz (–3dB)
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Tuner Output Level
- FM... 1kHz, ±75kHz Dev 500mV
- High Instantaneous Current Capability (HCC)
- ± 45 Amps

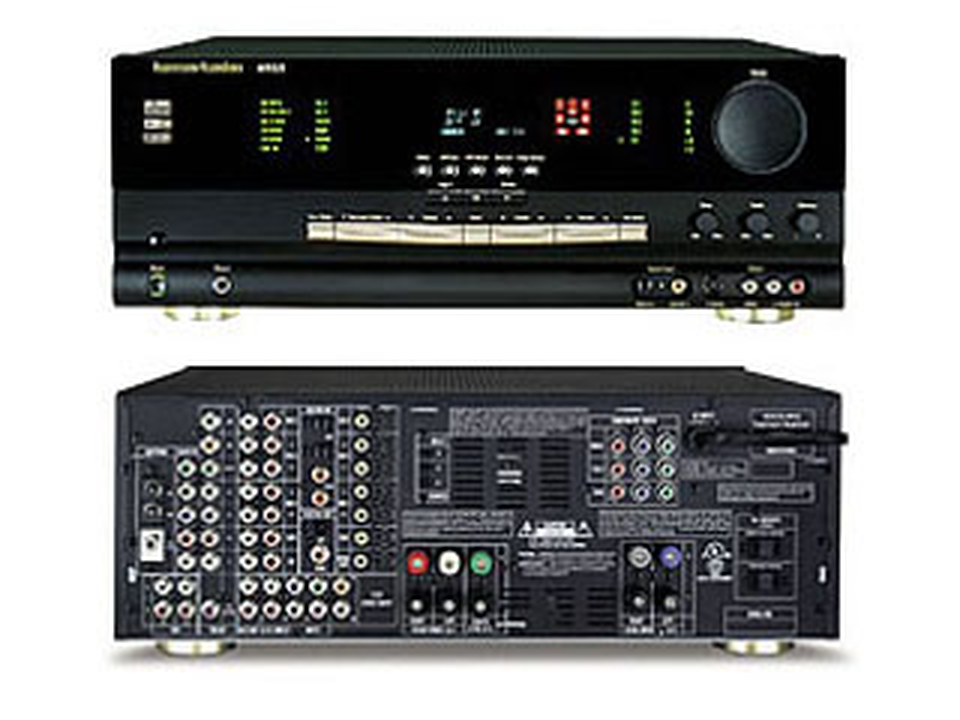

With the AVR 520, Harman Kardon begins a new era in the history of the popularly priced audio/video receiver. Its 7.1-channel surround sound processing opens the door to a variety of new surround modes, such as DTS-ES 6.1-channel decoding, 7.1 channels of Harman Kardon's exclusive Logic 7, and 8-channel direct inputs. Other advanced features include wideband, HDTV-ready component video switching; HDCD; MP3; Dolby Pro Logic II; VMAx; 6 digital inputs and 3 outputs; front-panel A/V inputs and a coax digital input switchable to output mode; and a backlit, programmable EzSet; remote control.
FAQs & How-Tos
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
