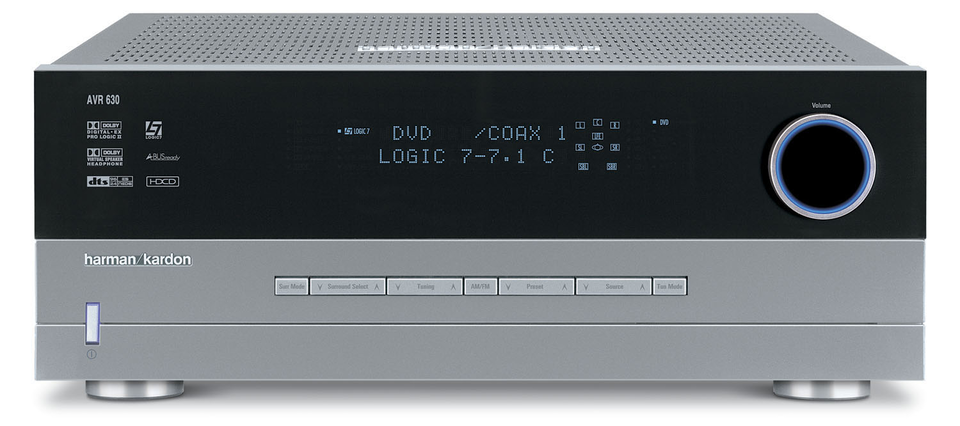

AVR 630
Audio/Video Receiver With Dolby Digital & DTS (90 watts x 2 | 75 watts x 7)
Sold from 2003 until 2004
| Predecessor Product: | AVR 525 |
|---|---|
| Made in: | China |
Documents & Downloads
Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 59W Idle, 1000W @ rated power output (7 channels driven)
- Digital Inputs (coaxial/optical)
- 2/2 on Rear; 1 (switchable to output)/1 on front
- Analog Inputs
- 1 A/V on front panel (switchable to output)
- Analog Inputs
- 2 audio- only
- Analog Inputs
- 4 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- On-Screen Display
- Yes
- Multizone Capability
- Audio; A-BUS Ready; RS-232 serial control port; surround back channels assignable to remote zone; Zone II remote
- EzSet
- Yes
- Remote Control
- Backlit, eight-device, programmable learning remote (2-line LCD display)
- Shipping Weight (System, Accessories, Packing)
- 47 lb (21.4kg)
- MSRP U.S.
- $1299.95 each
- # of Amplifier Channels
- 7
- Continuous Average Power (FTC) per Channel (stereo mode)
- 90 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 75 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17.3 inches (440mm)
- Height
- 6.5 inches (165mm)
- Depth
- 17.1 inches (435mm)
- Weight
- 41 lb (18.6kg)
- Dimensions:
- Carton Dimensions
- 20.1 inches x 10 inches x 22.2 inches (510mm x 254mm x 565mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 50MHz (–3dB)
- Frequency Range
- AM... 520–1720kHz
- Frequency Range
- FM... 87.5–108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 75 x 7 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 50 Amps
An audio beauty that tames the technology beast. The AVR 630 proves that beauty is much more than skin deep, delivering pure sound with all the latest surround modes, including Dolby Digital EX, DTS-ES, DTS 96/24, HDCD processing and our own Logic 7 processing, in tandem with Harman Kardon's high-current amplifier design. Managing the technology is an LCD remote with our EzSet feature, easy-to-use setup menus with renameable inputs, and front-panel inputs that may be switched to outputs. All this in a sleek design that is the perfect match for the latest flat-screen displays. Soothe yourself with the beautiful sound of the AVR 630.
FAQs & How-Tos
-
This receiver has a feature called "A/V Sync Delay" that allows you to manually set dissimilar video and audio synchronization that may occur with certain types of Plasma and HDTV's. The instruction for this setting can be found in your owner's manual in the section "Delay Adjustments" or "Delay Settings".Was this helpful? Thank you for your feedback!
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
