Salon2

The Salon2 is a floorstanding four-way system with three 8-inch woofers, a 6.5-inch mid-woofer, 4-inch midrange and 1-inch tweeter.

Documents & Downloads

Manuals

Owner's Manual (EN) 1.4 MB

Other

Product Brochures (EN) 1.78 MB

Product Specifications

General Specifications

Frequency Response: 3 dB from 23 Hz to 45 kHz ±0.5 dB from 29 Hz to 18 kHz ±1.0 dB from 26 Hz to 20 kHz

Height: 53.3" (135.4 cm)

Width: 14" (35.6 cm)

Depth: 23" (58.4 cm)

Weight: 146 lb (66.3 kg) Shipping weight

Crossover Frequencies: Four-way, high-order acoustic response @150 Hz, 575 Hz, and 2.3 kHz

Finishes: Piano black or mahogany finish

High Frequency Driver Components: 4" (10 cm) titanium cone midrange

Nominal Impedance: 6 ohms (nominal) 3.7 ohms (minimum @ 90 Hz)

Low Frequency Extension: 10 dB at 17 Hz -6 dB at 20 Hz -3 dB at 23 Hz

Low Frequency Driver Components: Three 8" (20 cm) titanium cone woofers

Mid-frequency Driver Components: 6 ½" (16.5 cm) titanium cone mid-woofer

Sensitivity: 86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)

Ultrahigh-frequency Driver Components: 1" (2.5 cm) beryllium tweeter

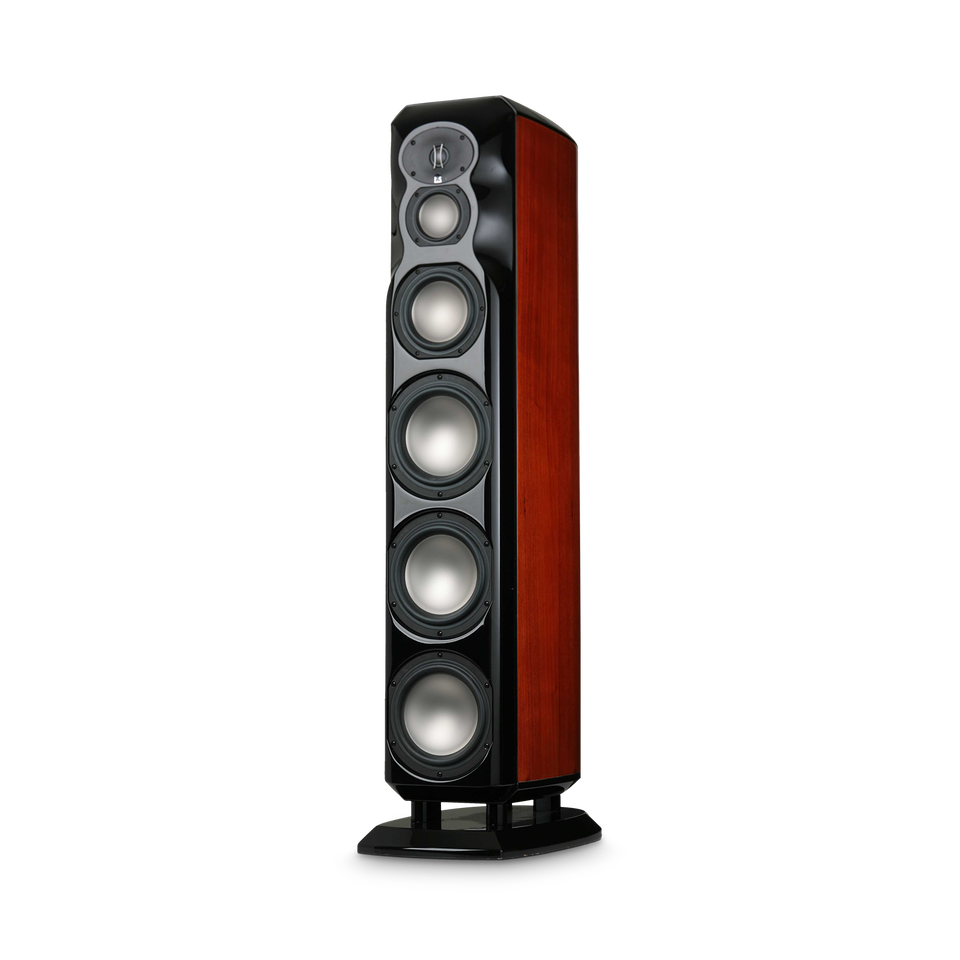

Salon2

Offering an elegant, designer-friendly appearance and unparalleled sound quality, the Salon2 is a floorstanding four-way system with three 8-inch woofers, a 6.5-inch mid-woofer, 4-inch midrange and 1-inch tweeter. Its sophisticated design even extends to the cast aluminum input and control panel, which is hidden from view, yet easily accessible. The smoked access panel continues the elegant shape of the cabinet, even when viewed from the side or rear. The Salon2 is as delightful for the discriminating eye as it is satisfying for the refined ear.
