HTS 10

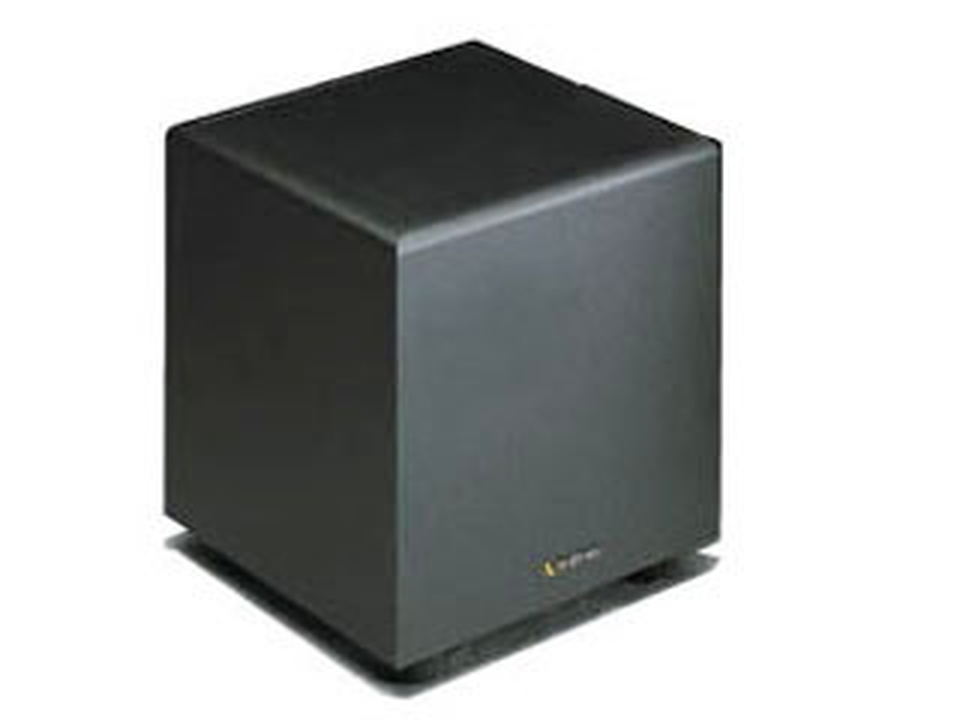

6-Piece Speaker w/ Subwoofer (BU80,HTS10 SAT)

Sold from 1999 until 2003

Predecessor Product:	CMS 1
Successor Product:	TSS 450
Made in:	Taiwan

Documents & Downloads

Manuals

Owners Manual (English) 582.39 KB

Other

DIY Troubleshooting (English) 288.38 KB

Product Specifications

General Specifications

Finish: Black/Charcoal

Amplifier Power (RMS): Subwoofer... 75-watt internal amplifier, Class D

Recommended Amplifier Power (RMS): Satellites/Center Channels... 10-100 Watts

Sensitivity (1 watt @ 1 meter): Satellites/Center Channel... 86dB

Drivers: Low/Mid Frequency... one 4 inch (102mm) magnetically shielded, polypropylene cone. High Frequency... one 1/2 inch (13mm) magnetically shielded, polycarbonate-dome tweeter. Subwoofer...8 inch woofer

Frequency Response: Subwoofer... 45Hz – 150Hz (±3dB)

Finish: Satellites... dark gray

Finish: Subwoofer... black

MSRP U.S.: $659.95 per system

Dimensions

Dimensions (H x W x D): Satellites/Center Channels... 8-1/2 x 4-1/2 x 5-1/2 inch

Dimensions (H x W x D): Subwoofer… 11-1/2 x 11-1/2 x 11-1/2 inch

Complete Home-Theater Loudspeaker System Containing Five 2-Way, Video-Shielded Satellites with Built-in Wall Brackets and an 8 inch, 75-Watt Powered Subwoofer. Speakers and Subwoofer Cables included.
