CASCADE MODEL 12

300-Watt Powered Subwoofer With 10 inch MMD™ Driver, Dual 10 inch MMD Passive Radiators and Infinity's Proprietary Room Adaptive Bass Optimization System™ (R.A.B.O.S.™)

Documents & Downloads

Manuals

Owners Manual (English) 1.18 MB

Other

Product Review (English) 315.16 KB

Product Specifications

General Specifications

Finish: Real-Wood Cherry Veneer, High-Gloss Black, High-Gloss Silver

Technology: R.A.B.O.S. & MMD

Frequency Response: 32Hz – 150Hz (±3dB)

Frequency Response: 28Hz – 150kHz (-6dB)

Amplifier Power (RMS): 300 Watts with R.A.B.O.S.

Crossover Frequency(ies): 50Hz – 150Hz, continuously variable; 24dB/octave LFE Input

Subwoofer Transducer: 10 inch (250mm) MMD; Dual 10 inch (250mm) Passive Radiators

FinishEU: Real-Wood Cherry Veneer, High-Gloss Black

MSRP U.S.: $999.95 each

Dimensions

Weight: 42 lb (19kg)

Dimensions (H x W x D): 20 inch x 15 inch x 13-7/8 inch (508mm x 381mm x 352mm)

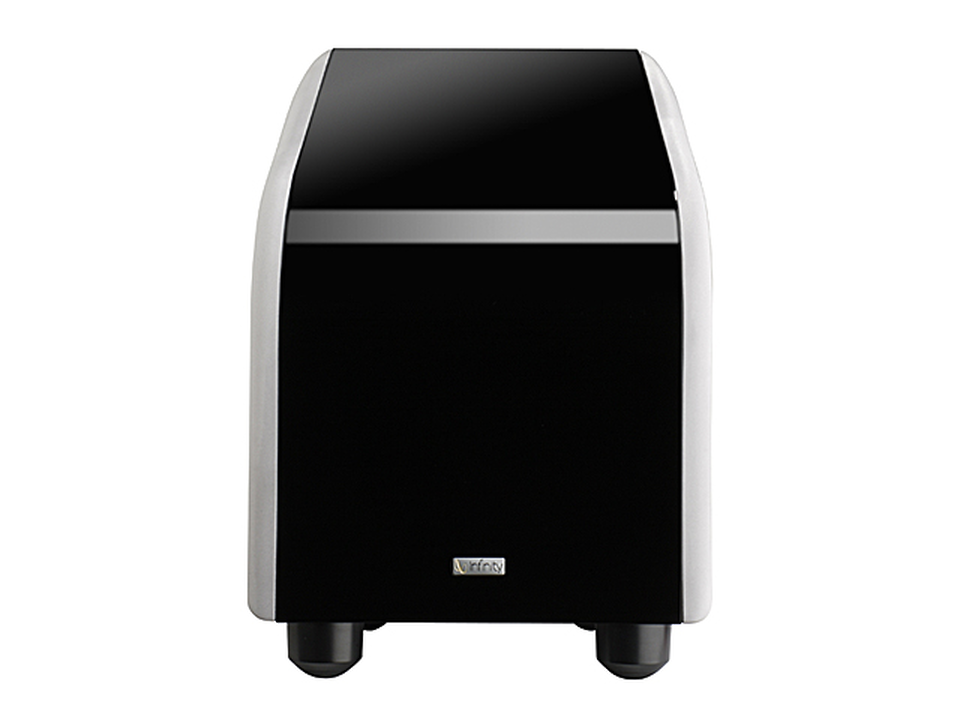

The compact Infinity Cascade™ Model Twelve powered subwoofer features a 300-watt amplifier to deliver deep, powerful bass with dramatically reduced distortion for an incredibly lifelike sound. The Cascade Model Twelve also includes Infinity's proprietary Room Adaptive Bass Optimization System (R.A.B.O.S.) and test measurement kit, which allows you to optimize low-frequency performance to match your unique living environment.
