TC 30

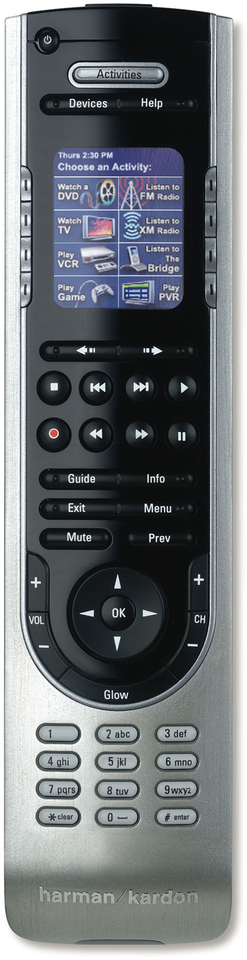

Programmable/Learning Activity-Based System Remote Control

Documentos y descargas

Manuales

Owners Manual (English) 854.16 KB

Guía de inicio rápido

Quick Start Guide (English) 4.32 MB

Especificaciones del producto

Características generales

Computer Type: PC... Pentium II or better Macintosh... PowerPC G3, G4 or G5, or other OS X-compatible

Display Viewing Area (H x W): 2-1/2 inch x 2 inch (64mm x 51mm)

Maximum Number Devices: 15

USB Cable Length: 5.2 ft (1.6m)

Display Resolution: 128 x 160 Pixels, color

Maximum Number Activities: 255

Operating System: PC... Windows 98SE, Me, 2000 or XP Macintosh... OS X or higher

USB Connectors: USB A (male) to USB mini B (male), with ferrite bead

Display Backlight: Yes, with adjustable time-out

Memory Required: 8MB RAM

Wireless Technology: Infrared

Hard Disk Space Required: 2MB Free hard disk space

IR Transmission Range: 32.8 ft (10m)

IR Transmission Frequency (maximum): 120kHz

Other Drives Required: CD-ROM drive

Computer Connections Required: USB Port Internet Access

IR Learning Range: 6.3 inch (16cm)

IR Learning Frequency (maximum): 120kHz

Batteries (number and type needed): One rechargeable lithium-ion

Total Charge Time: 220 minutes

MSRP U.S.: $299.95 each

Medidas

Weight: Charging Cradle... 5 oz (142g)

Weight: REMOTE (without battery)... 4.6 oz (130.5g)

Dimensions (H x W x D): REMOTE... 8-7/8 inch x 2-1/8 inch x 1 inch (224mm x 52mm x 24mm)

Charging Cradle Dimensions (H x W x D): 8-13/16 inch x 2-3/8 inch x 11/16 inch (224mm x 60mm x 18mm)

There's a good reason that the inchTC inch in inchTC 30 inch stands for inchTake Control. inch This unique product does more than just operate single components; it dramatically changes the way you configure and use a remote control. Setup is done directly through our Web site, where plain language inchwizards inch recognize the brand and model of all your equipment and automatically send the right codes back to the TC 30. The TC 30 remote groups all the needed commands, including inchWatch TV, inch inchListen to CD, inch inchWatch a DVD inch and inchListen to The Bridge, inch into unified activities. All you need to do is look at the color LCD screen, select the icon that matches the activity, and the TC 30 does the rest. It's easy, it's fun and it makes operating otherwise complex systems a breeze.
