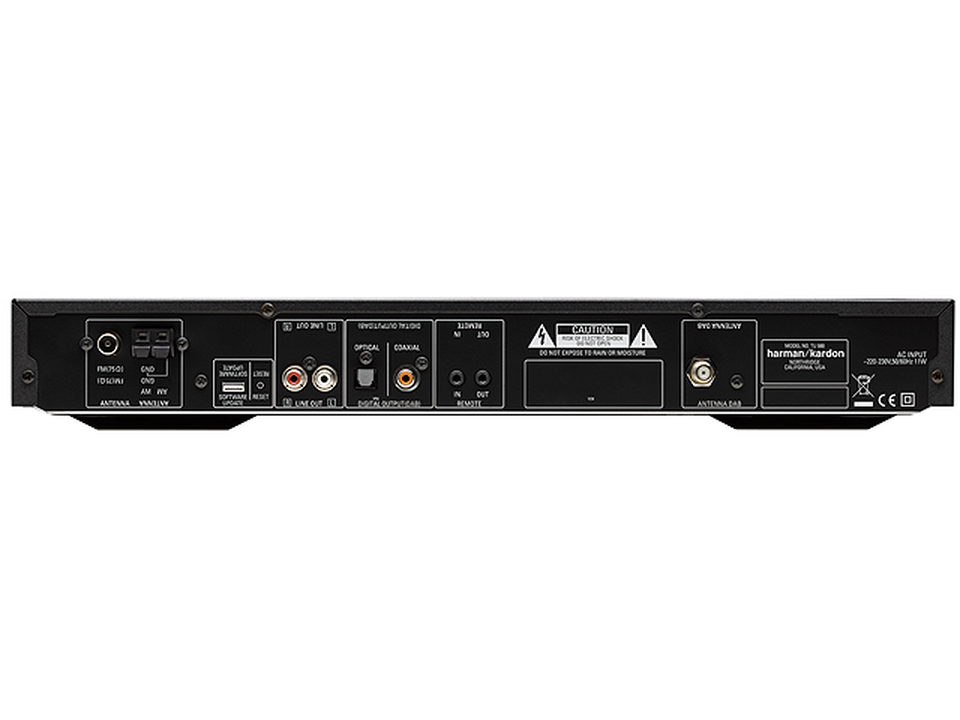

TU 980

Dual band DAB/FM/AM tuner

Vendido desde 2008 hasta 2012

Documentos y descargas

Otros

Spec Sheet (English) 843.93 KB

Especificaciones del producto

Características generales

Power Requirements: AC 220V – 240V/50Hz

Power Consumption: 12W max

Medidas

Weight: 3.4kg

Dimensions (H x W x D): 63mm x 440mm x 334mm

Tuner Specifications

Frequency Range: AM... 522kHz – 1620kHz

Frequency Range: DAB... Band III... 174MHz – 240MHz

Frequency Range: DAB... Band L... 1452MHz – 1492MHz

Frequency Range: FM... 87.5MHz – 108MHz

Input Sensitivity: DAB... –87dBm

Signal-to-Noise Ratio: AM... 0.05%/0.18% (Mono/Stereo)

Distortion: AM... 0.15%

Output Level: DAB... 1V (–20dBm)

Signal-to-Noise Ratio: DAB... 95dB

Total Harmonic Distortion: DAB... 0.005%

Stereo Separation: DAB... 88dB

Signal-to-Noise Ratio: FM... 71dB/65dB (Mono/Stereo)

Distortion (Mono/Stereo): FM... 0.25%/0.4%

The first (more than 50 years ago) Harman Kardon® product was a tuner, and we’ve been improving them ever since. The TU 980 combines the distortion-free, CD-like sound of Digital Audio Broadcasting (DAB) with information-rich RDS FM, and features a bright, legible two-line display. You can control the TU 980 with its own remote, or with the remote from most Harman Kardon amplifiers. Either way, you’ll enjoy the drift-free reception Harman Kardon tuners are famous for.
