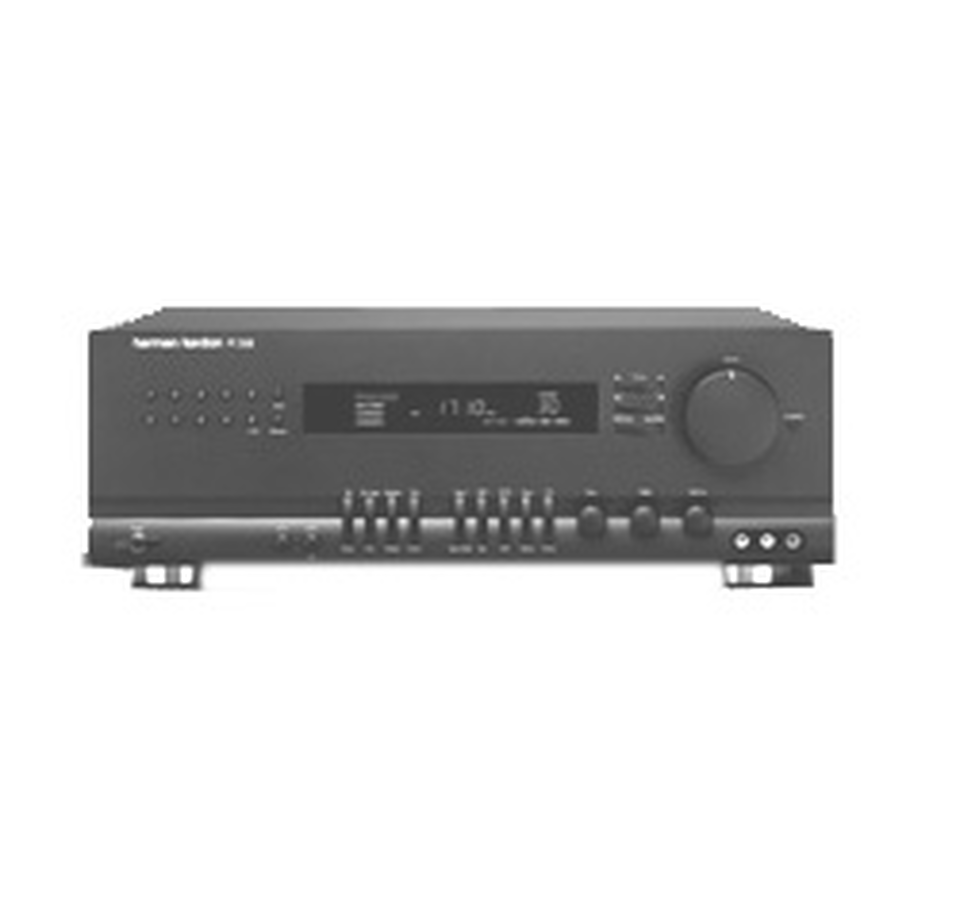

PT 2500

Surround Sound Preamp/Tuner

Vendido desde 1996 hasta 1998

Documentos y descargas

Manuales

Owners Manual (English) 462.56 KB

Especificaciones del producto

Características generales

MSRP U.S.: $529.95 each

Tuner Specifications

Usable Sensitivity: FM... MONO – 11.2dB

Quieting Sensitivity: FM... STEREO – 37.2dB

Signal-to-Noise Ratio: FM... MONO – 74dB @ 65dBf

Signal-to-Noise Ratio: FM... STEREO – 70dB @ 65dBf

Capture Ratio: FM... 1.5dB

Alternate Channel Selectivity: FM... 65dB

Selectivity: FM... ADJACENT CHANNEL – 5dB

IF Rejection: FM... 100dB

AM Rejection: FM... 55dB (@ 45dBf)

Stereo Separation: FM... 45dB @ 1kHz, 65dBf

Total Harmonic Distortion: FM... MONO – 0.2% @ 1kHz, 65dBf

Total Harmonic Distortion: FM... STEREO – 0.3% @ 1kHz

Sensitivity: AM... EXTERNAL ANTENNA – 25uV

Alternate Channel Selectivity: AM... 55dB

Image Rejection: AM... 35dB

IF Rejection: AM... 60dB

Preamp Specifications

Signal-to-Noise Ratio: PHONO MM – 72dB

Signal-to-Noise Ratio: VIDEO & CD – 96dB

Input Level/Impedance: PHONO MM – 2.5mV/47k ohms, 125pF

Input Level/Impedance: VIDEO & CD – 150mV22k ohms

RIAA Equalization: ±1.0dB (20Hz - 20kHz)

Tone Controls: BASS – ±10dB @ 50Hz

Tone Controls: TREBLE – ±10dB @ 10kHz

Loudness Control: +6dB @ 100Hz (volume at -40dB)

Loudness Control: +3dB @ 10kHz (volume at -40dB)

Total Harmonic Distortion: < 0.02% (20Hz – 20kHz)

Frequency Response: < 10Hz – 115kHz (-3dB)

Dolby Pro Logic decoding never sounded - or looked - so good. A full-function Dolby Pro Logic preamp/tuner with 5 audio inputs, 3 video inputs, and VCR-dubbing capability. Front, center, surround and subwoofer outputs, along with a system remote and more, complete this powerful, elegant package.
