W363

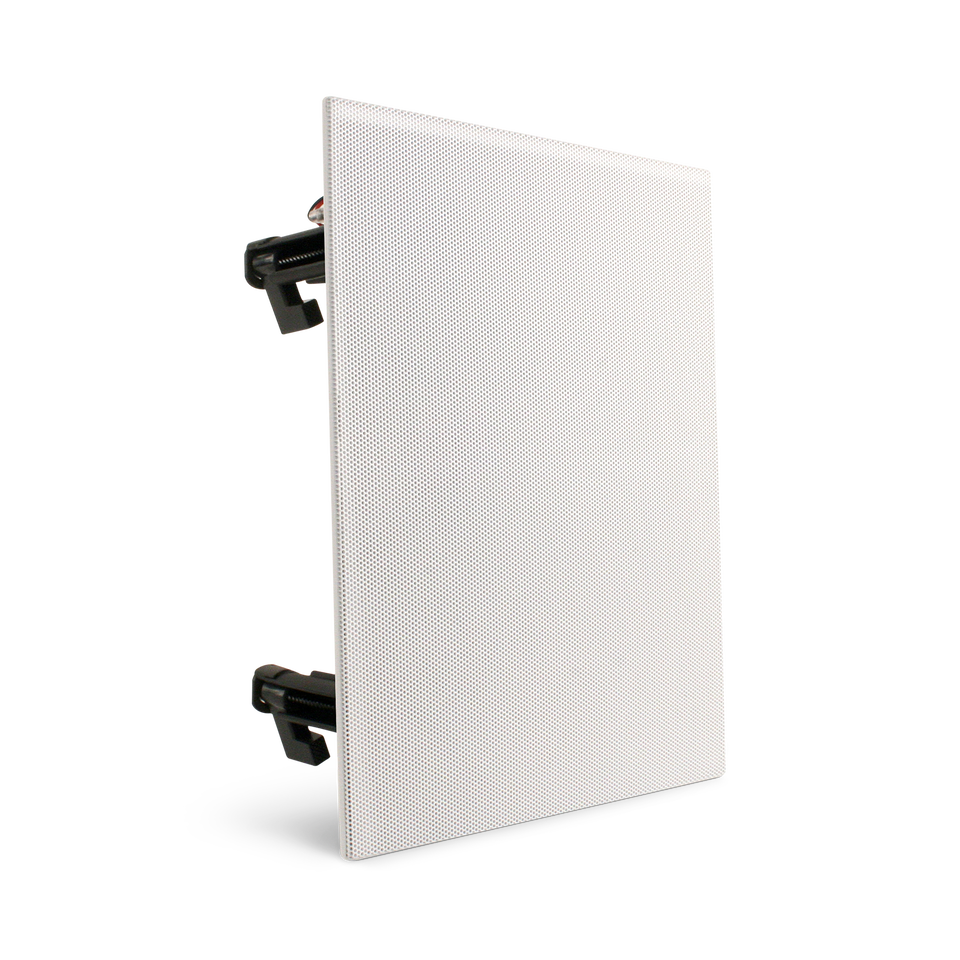

6 ½" In-Wall Loudspeaker

Documentos & Downloads

Outros

Especificações de Produto

Especificações Gerais

Depth: Mounting depth

Weight: 3.8 lb (1.7 kg)

Cutout dimensions (H x W): 9.8" x 7.3" (24.9 cm x 18.5 cm)

High-frequency Driver Components: 1" aluminum dome swiveling tweeter with waveguide

Low-frequency Driver Components: 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer

Mounting: C-2 mounting mechanism

Recommended Amplifier Power: 10 - 120 Watts RMS

Includes zero-bezel magnetic grille

Grille finished dimension (H x W): 10.8" x 8.3" (27.3 cm x 21.1 cm)

Compatible with wall material thickness range: 0.5" – 1.0" (1.3 cm – 2.5 cm)

Shipping weight: 4.9 lb (2.2 kg)

W363

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
