M80XC
8" 2-way Extreme Climate Loudspeaker
Documentos & Downloads
- Owner's Manual (CN)
- Owner's Manual (DA)
- Owner's Manual (NL)
- Owner's Manual (FI)
- Owner's Manual (FR)
- Owner's Manual (DE)
- Owner's Manual (IT)
- Owner's Manual (JP)
- Owner's Manual (KO)
- Owner's Manual (NO)
- Owner's Manual (PTBR)
- Owner's Manual (RU)
- Owner's Manual (ES)
- Owner's Manual (SV)
- Manual do Proprietário (Inglês)
Especificações de Produto
- High-Frequency Driver Components
- 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
- Low-Frequency Driver Components
- 8-inch / 200mm Aluminum cone woofer
- Input Connections
- Stainless Steel screw terminals
- Frequency Range
- 60Hz - 22kHz -3dB
- Recommended Amplifier Power
- 20 - 80 Watts RMS
- Transformer Taps
- 70V
- Crossover Frequencies
- 2.3kHz
- Low Frequency Extension
- -10dB @ 45Hz, -6dB @ 52Hz, -3dB @ 60Hz
- Impedance
- 70V / 100V 60W variable tap with 8-ohm bypass
- Sensitivity
- 89dB @ 2.83V / 1m
- Enclosure Type
- Sealed
- Mounting
- InvisiBall® mounting system
- Finishes
- Black or White
- Dimensions (H X W X D)
- 15 x 11 x 8.6 in (380 x 280 x 220 mm) 8.0 in (200mm) deep when mounted on InvisiBall wall mount
- Weight
- 14 lb (6.4 kg)
- Included Accessories
- Input terminal weather cover, InvisiBall wall mount, 6 x 180mm hex key
M80XC

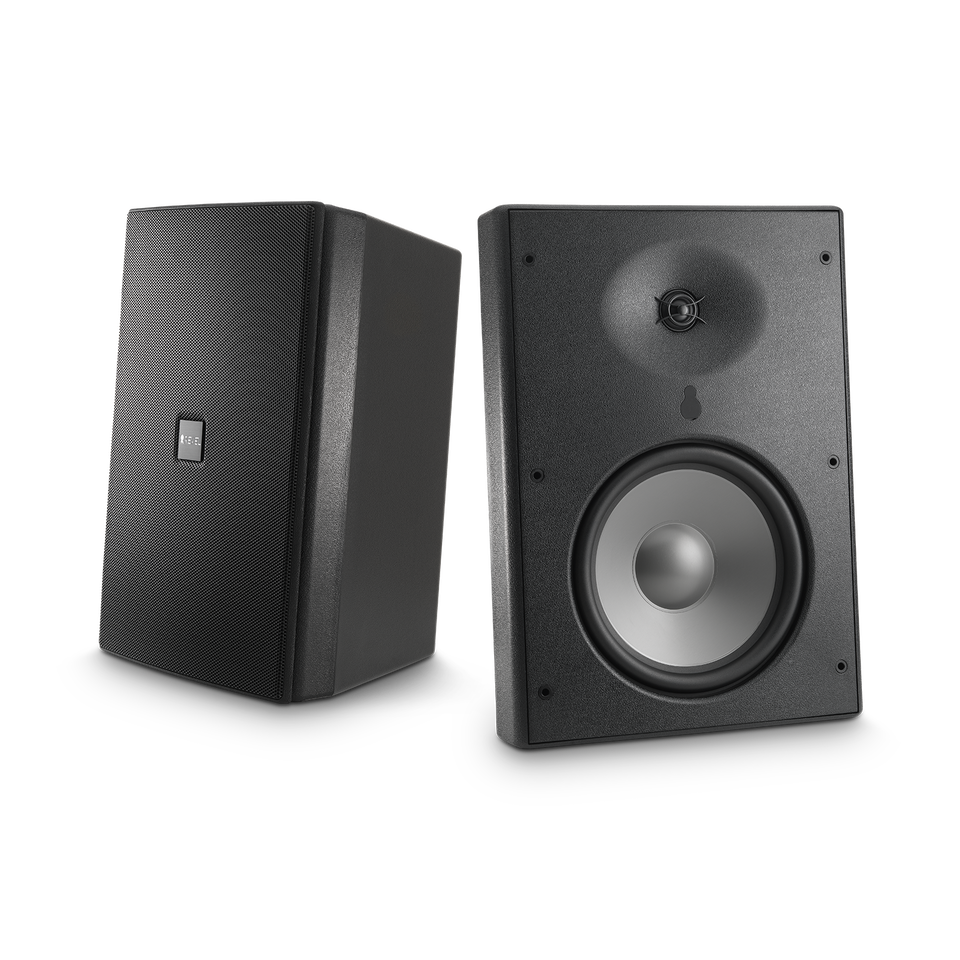

The Revel M80XC is a 2-way 8-inch / 200mm Extreme Climate outdoor loudspeaker. As part of the XC Series, they have been specifically engineered and rigorously tested to perform to Revel's exacting standards in outdoor, damp, wet, or high-humidity locations and have been designed to withstand environmental abuses while not affecting their performance. The M80XC is also resistant to corrosion from salt water and can be deployed in marine applications such as on docks or beachfront property. The included InvisiBall® mounting system provides flexible positioning options while the stainless steel speaker terminals with weather-protection cover ensure long-lasting performance. 70V / 100V capability is included for large system configurations or long cable runs. With the M80XC, audiophile-caliber sound quality can now be found in Extreme Climate installations.
