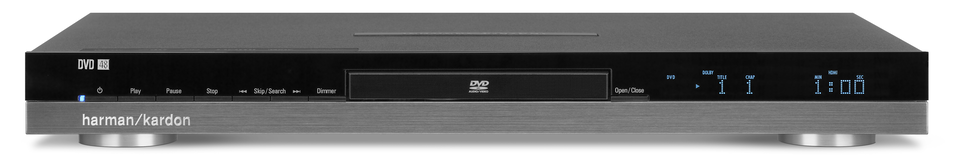

DVD 48

Single Disc DVD Player

Såld från 2007 tills 2009

Föregående produkt:	DVD 47
Efterträdande produkt:	BDP 1
Tillverkade i:	China

Dokument och hämtningar

Bruksanvisningar

Bruksanvisning (Engelska) 2.32 MB

Annat

Produktspecifikationer

Allmänna specifikationer

Applicable Discs: Audio formats... DVD-Audio MLP lossless, SACD 2-channel or multichannel, Linear PCM, MPEG, Windows Media 9, Dolby Digital or DTS audio discs

Applicable Discs: Disc formats... 5-inch (12cm) or 3-inch (8cm) DVD-Video or DVD-Audio, standard-conforming DVD-R, DVD+R, DVD-RW, DVD+RW, SACD, VCD, CD, CD-R, CD-RW or MP3 discs

Applicable Discs: DVD-Layers... Single side/single layer, single side/dual layer, dual side/dual layer

Applicable Discs: Region Code... DVD-Video discs with Region Code 1 or 0 only

Applicable Discs: Still-image format... JPEG

Video Signal System: NTSC or PAL

HDMI Output: Video... 480p, 720p, 1080i, 1080p HDMI version 1.1-compliant HDCP version 1.1-compliant

Composite Video Output: 1V p-p/75 ohms, sync negative polarity

S-Video Output: Y/Luminance... 1V p-p/75 ohms, sync negative polarity C/Chrominance... 0.286V p-p

Component Video Output: Y... 1V p-p/75 ohms, sync negative polarity

Component Video Output: Pr... 0.7V p-p/75 ohms

Component Video Output: Pb... 0.7V p-p/75 ohms

Analog Audio Output: 2V RMS (1kHz, 0dB)

Signal-to-Noise Ratio: 105dB (A-weighted)

Dynamic Range: DVD... 100dB (18-bit)/105dB (20-bit)

Dynamic Range: CD/DVD... 96dB (16-bit)

Wow and Flutter: Below measurable limits

Power Requirements: 110 – 240VAC/50 – 60Hz

Power Consumption: 1 Watt (on/standby)/13 watts (max)

Shipping Weight (System, Accessories, Packing): 8.8 lb (4kg)

MSRP U.S.: $399.95 each

Mått

Weight: 6 lb (2.7kg)

Dimensions (H x W x D): 2 inch x 17-3/10 inch x 11-1/4 inch (50mm x 440mm x 285mm)

Carton Dimensions (H x W x D): 5 inch x 14-3/8 inch x 20 inch (127mm x 365mm x 508mm)

Disc Player Specifications

Frequency Response: DVD (linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)

Frequency Response: DVD (linear PCM)... 2Hz – 44kHz +0/–1.5dB (96kHz sampling)

Frequency Response: DVD (linear PCM)... 2Hz – 88kHz +0/–0.5dB (192kHz sampling)

Frequency Response: CD... 2Hz – 20kHz +0/–0.5dB

Total Harmonic Distortion: DVD/CD... 0.0025% @ 1kHz

One of the most advanced Harman Kardon DVD players, the DVD 48 is among the most sophisticated of its kind. The DVD 48 features an HDMI; connection, scales older video discs to 1080p with DCDi by Faroudja technology, and offers unsurpassed fidelity in the reproduction of DVD-Audio and SACD; discs, as well as MP3 and WMA files. Do try all of this at home. The DVD 48 makes it easy.
